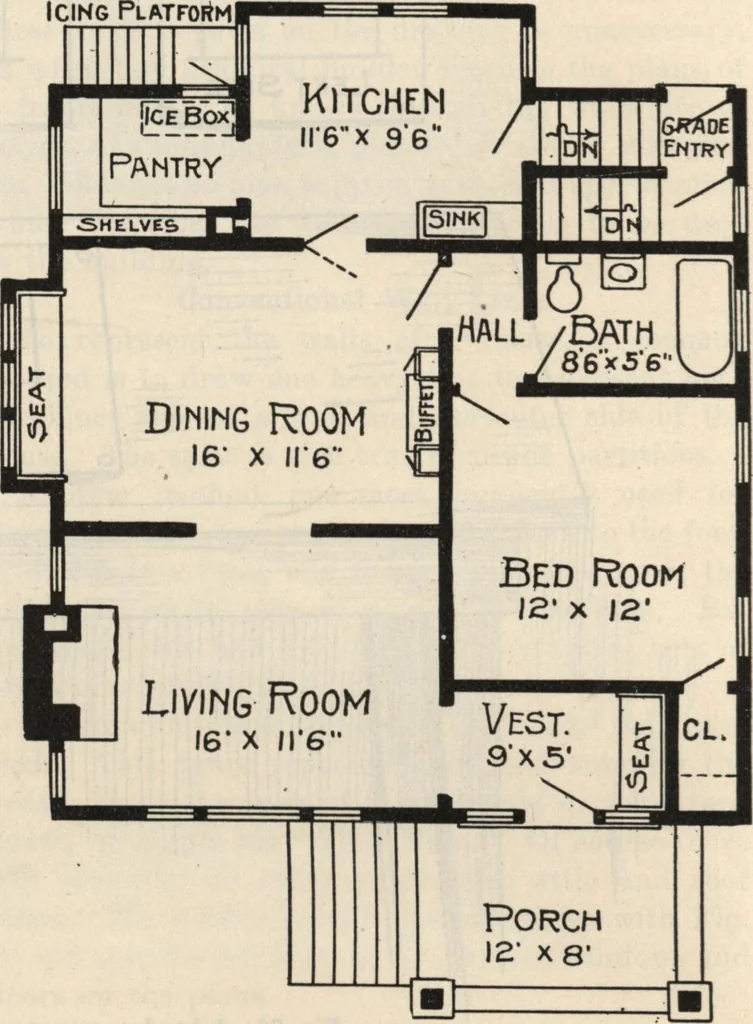

rm which is marked icing platform/ thiswill be explained directly. The reader will have observed that the wall linehas two breaks on the left side from the straightrectangular form; these being made to show that achimney and bay-window were desired. This willall be made perfectly clear by an… … Fig. 38—Floor plan for bungalow 6640. HOW DIFFERENT FIXTURES ARE SHOWN 17 partitions which are indicated by a heavy line, thesame as the outside walls. Doorways lead from thehall into the dining room, bedroom and bathroom,the doors swing as indicated. It will be noticedthat no door is indicated…
