How to read plans and take off bills of materials. (1917)
William A. Radford · Radford Architectural Company · leaf 18

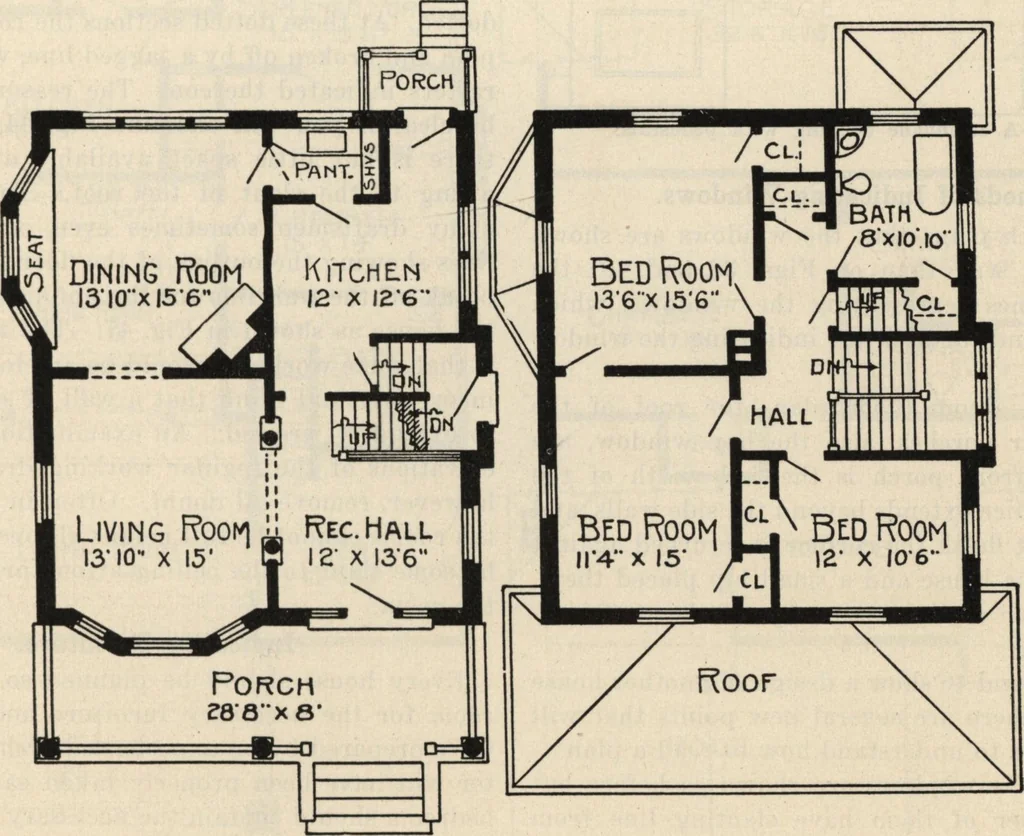

Fig, 41—Perspective of a concrete block residence of seven rooms. Two and a half stories and basement. Design No. 6564.We can furnish blue printed working plans of this building to any desiring them for only $10.00 per set. … Fig. 42—Floor plans of concrete block residence, No. 6564. 20 HOW TO EEAD PLANS finish against. Note the jagged cross line across thesteps, this is used to indicate that some part of thedrawing which should appear (the upper portion ofthe stairs to the second floor) is omitted, so as toshow some…
Building materials, house plans · House contruction · Lumber
