How to read plans and take off bills of materials. (1917)
William A. Radford · Radford Architectural Company · leaf 219

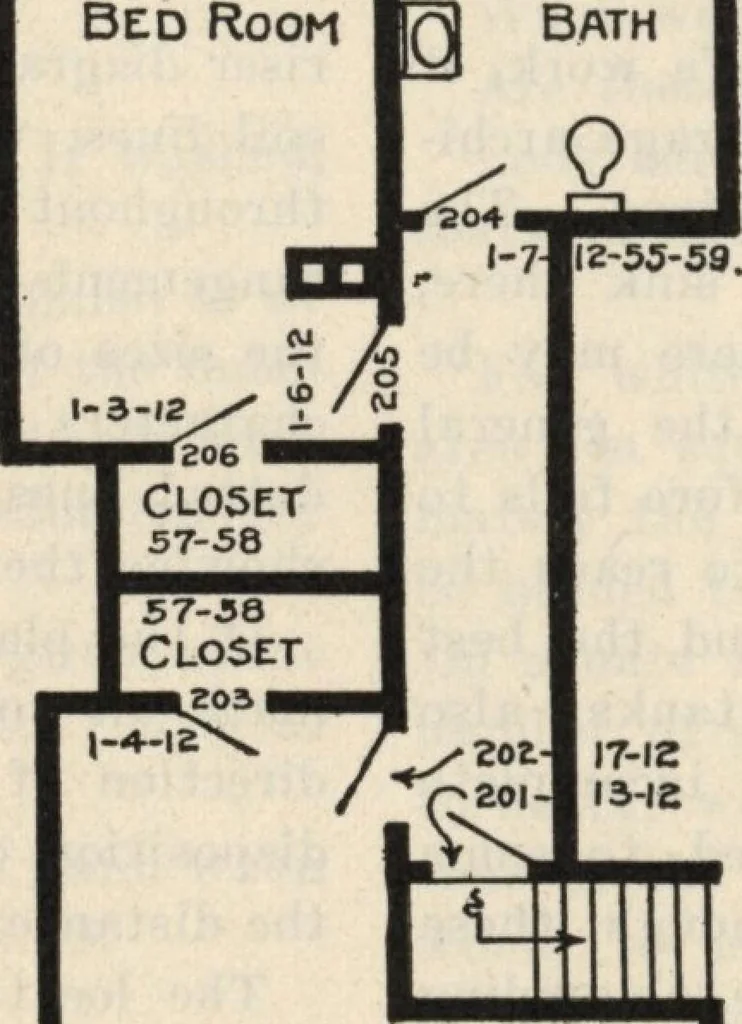

32-34-37-38-39 Bed Room 1-5-10-13-17. 3g-3+-37-3f Porch I _1 … Bed Room 3E-33-37-38 32-33-37-38-^39 32-33-37-36- Fig. 174—House plans showing layout of hardware items needed, In the following example, articles for doors are numberedfrom 1 to 30; for windows, from 30 to 50; and miscella-neous, from 50 upwards. First floor doors are numbered from100 to 150;…
