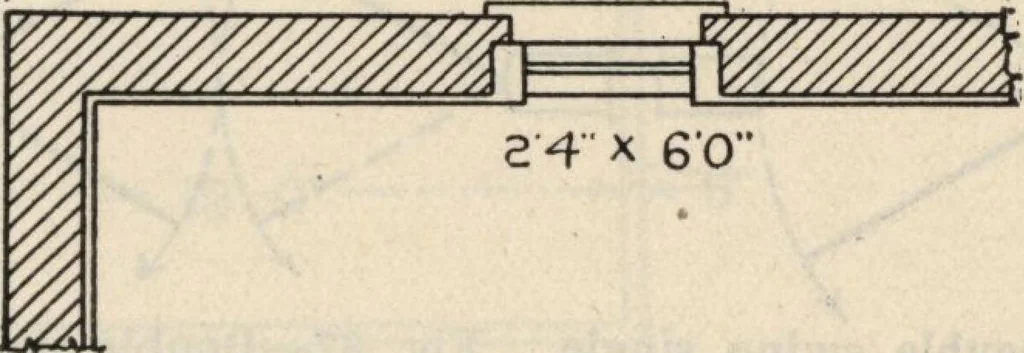

rs, or-folding doors as they are sometimes called; C is aplain cased opening; D an ornamental grille open-ing with columns and arch or beam, at the left acolumn starting at the floor is meant and at the righta column on a pedestal is meant. Studding Detail. On detail drawings where sections or… … Fig. 60—How a masonry wall is shown. 26 HOW TO READ PLANS
