How to read plans and take off bills of materials. (1917)
William A. Radford · Radford Architectural Company · leaf 32

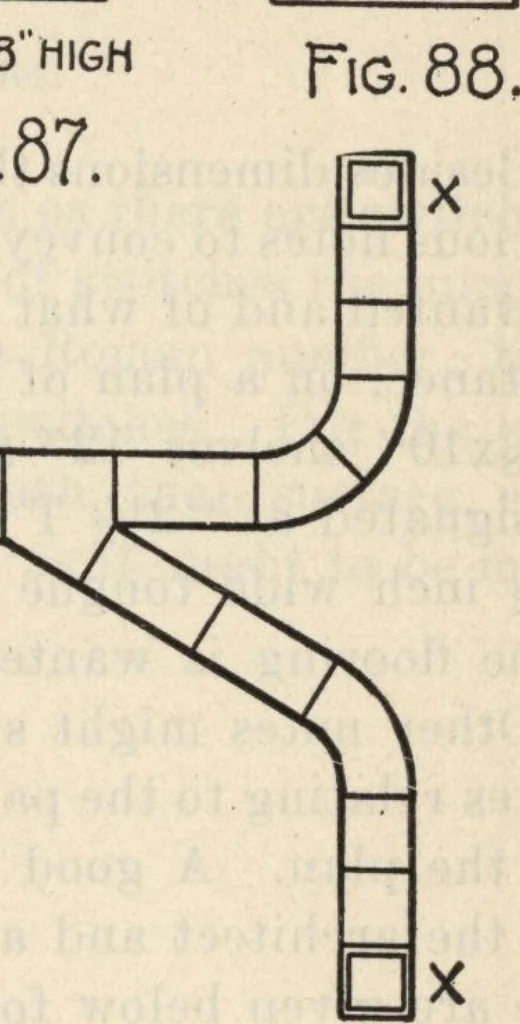

FlG.89. … Fig.91. C Fig. 90. r i u i r > I 1 » 1 »/ Figs. 86, 87, 88—Different ways of showing radiator. Fig. 89—How hot air pipes are shown. Fig. 90—Another way of showing hot air pipes. Fig. 91—Radiator Face. are frequently marked on the plan or the size ismentioned in the specifications. Wall registers…
