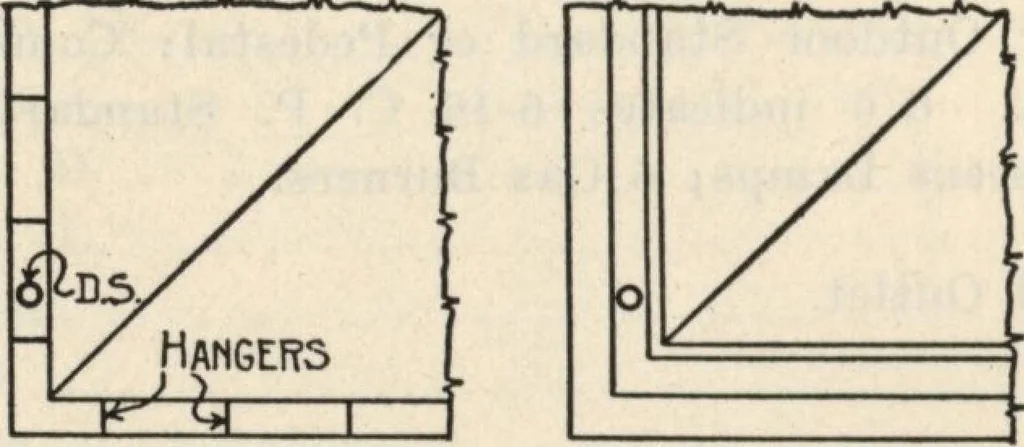

se forthe leader connecting to the sewer pipe, dry well,etc. So far the leader has been shown on the sideof the house, but it is also shown on the face of thehouse which the elevation represents. At E anornamental hub is designated. Sometimes the size ofthe leader is marked on the elevation. In… … « / r / ^Brackets- Figs. 96, 97, 98—Metal work detail. shown at F. <3t shows that the leader is held tothe wall by ornamental straps. For the material of the leader we will have to lookin the specifications, altho sometimes it is markeddirectly on the plans or elevations. Frequentlythe locations…
