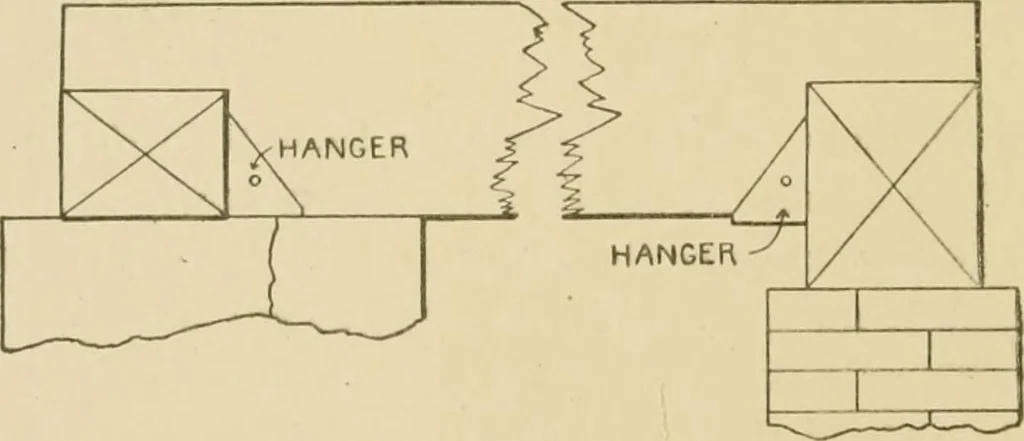

Fig. 99. Framing of Joist into Sill. … Fig. 100. Use of Hangers. the girder in the same way as they are framed into the sill, amortise being cut in the girder and a tenon on the joist. This iscalled gaining and is shown inFig. 99. The top of the girder thuscomes several inches below the topof the floor. Another method is to make thetop…
