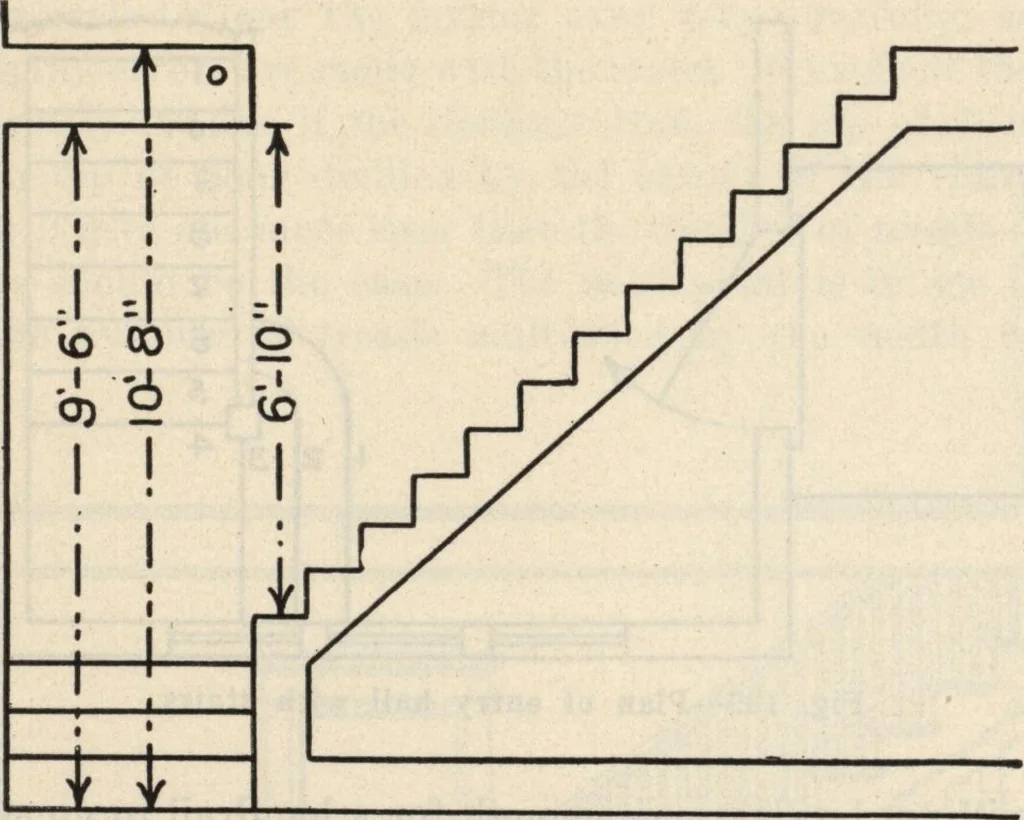

an old lady who has to walk clown seven or eightsteps before she can grasp the handrail. This con-dition occurs too often. Sometimes it is the fault ofthe architect, but more often it is the framers whoare in error, as they do not allow enough clearancespace for the handrail. Fig. 148 shows a first… … Fig, 141—Stairway as planned, plenty of headroom. staircase and the handrail and baluster should con-tinue up the second floor* 4 to 6 inches should beallowed, as shown on Pig. 150. If it is not on theplans be sure that you call attention to and allowfor it, otherwise you will produce a staircase…
