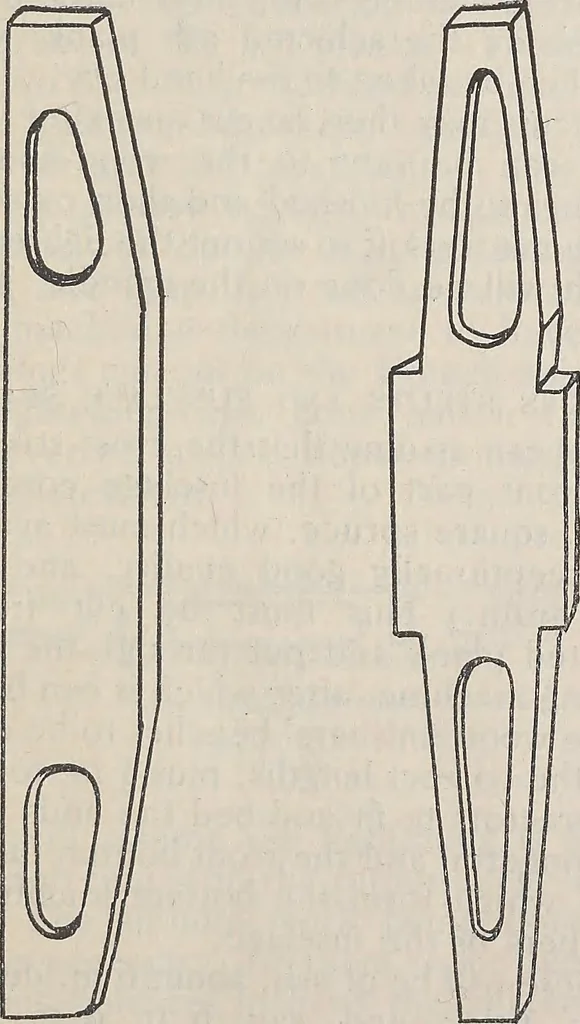

side of the centre of lengthand is carried towards each end of thestrut, diminishing in width as the end isapproached, the lightening stopping at2\ in. from the end (see Fig. 5) with amargin or flange at the sides | in. thick. Before cutting up an ash plank it will bebest to get the wood setter-out… … ASH FUSELAGE STRUTSFig. 5. The template having been cut out andcompleted and checked by the inspection 45 HOW AN AEROPLANE IS BUILTdepartment, with the drawing, it will besent to the wood marker-off, who will goto the machining shop and mark off theoutline on the selected ash plank, whichcan then…
