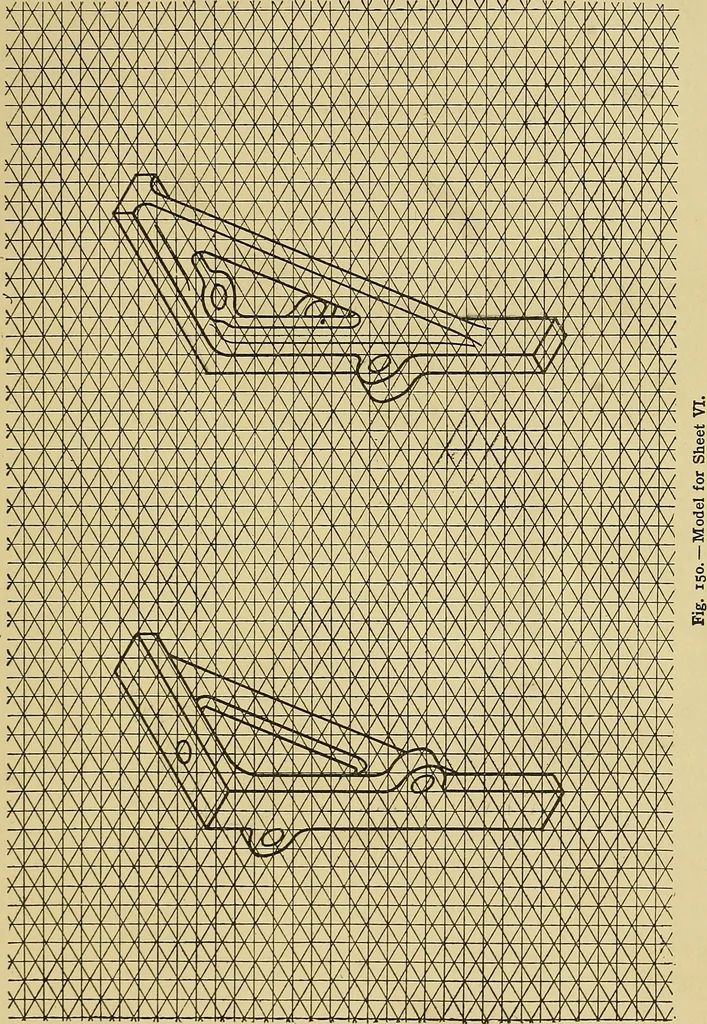

49. — Perspective ofShelf Bracket. 124. — Offset con- struction in Isometric Drawing, page 164,The title of this sheet is Shelf Bracket. 128. ISOMETRIC DRAWING AND SKETCHING 173 … 174 ELEMENTS OF DRAWING 138. Examination on Chapter V. As a final examination onthis chapter make an Isometric Drawing of Tool Rest Support(see Fig. 151) or of any other parts of the Lathe or of parts ofany other machine assigned, on plain or ruled paper, and inpencil or ink as directed. Also study…
