Illustrated catalogue of galvanized iron roofing and shedding, iron structures, &c. : patent portable steel railways, railway plant, iron bridges, &c. (1884)
A. & J. Main & Co. · A. & J. Main & Co. · leaf 31

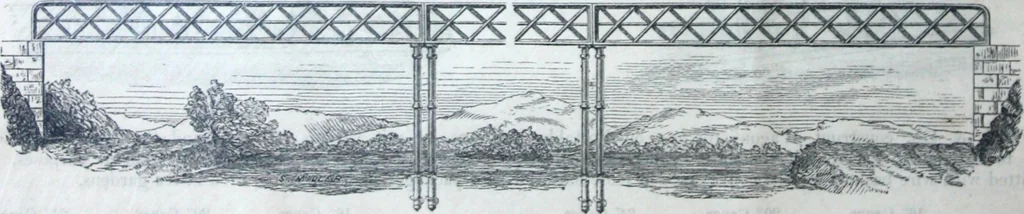

No. 306.No. 306.—This design represents the most ordinary form of the Lattice Girder Bridge, suitable either for Foot-Passenger orCarriage Traffic, and can be economically worked in spans up to 60 or 70 feet. The plain appearance of the Lattice can be relieved by Washers being placed at the… … No. 344. No. 314.—This illustration shews a Lattice Girder Bridge of a wide span, carried by Cast-Iron Screw Piles fixed in the bed ofthe river. The Bridge may be carried out to any required length, the individual spans being from 50 to 60 feet each. Theof Iron Piles is very much less than stone…
Roofing · Sheet roofing · Corrugated roofing · Sheet metal · Structural iron · Ironwork
