Development of an Impinging-jet Fuel-injection Valve Nozzle (1931)
NASA Technical Reports Server (NTRS) · leaf 14

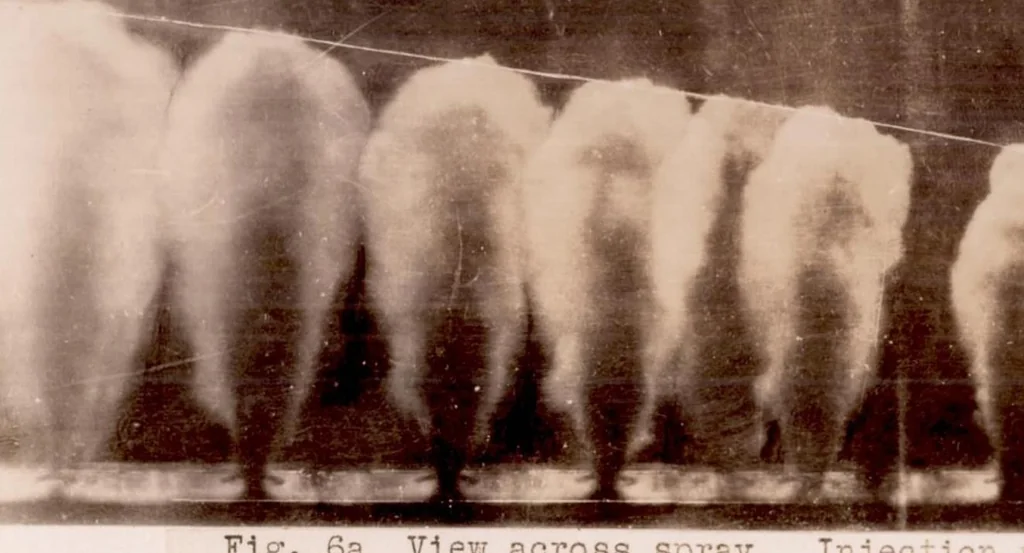

Fig. 6a View across spray. Injection pree _<r square inch. Chamber oressure 200 pounds oer enuare inrh* Fig. 6"b Viev/ through spray. Injection pressure 3000 oounds per square inch. Chamber pressure atmospheric. Note Edges obscured by side of spray chamber. rrn Fig. 6 Spray photographs with…NASA Technical Reports Server (NTRS)
