Free Spinning Wind-tunnel Tests of a Low-wing Monoplane with Systematic Wings and Tails (1937)
NASA Technical Reports Server (NTRS) · leaf 14

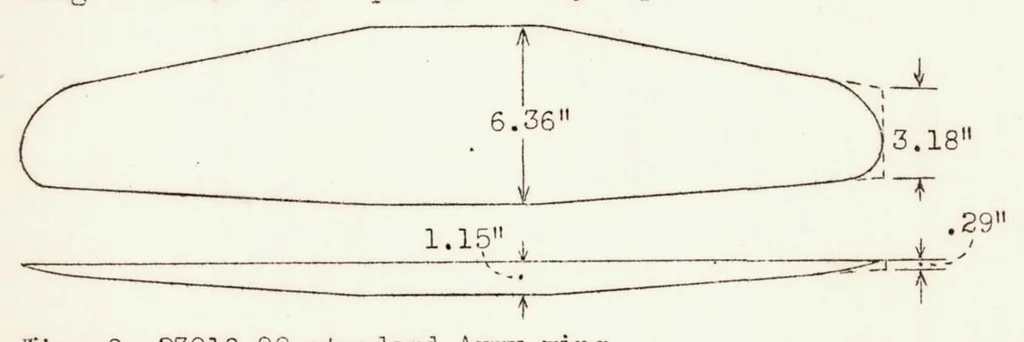

N.A.C.A. Technical Note No. r I Fig. 2 5.34" . .65" 30" _J_! Wing 1- 23012 rectangular with Army tips. Wing 2- 23012 with 20 percent full-span split flaps at 60 Wing 3- 23012 rectangular with rectangular tips. 7/ing 4- 23012 rectangular with faired tips. ^J^ j Wing 5- 0009 rectangular with Army… … Wing 8- 23018-09 standard Army wing (2:1 taper, square center, \rmy tips.) Figure 2,- Wings used on low-wing monoplane. N.A.C.A. win£ sections.NASA Technical Reports Server (NTRS)
