Leeds, Charles Carley, 1870- [from old catalog] · New York, D. Van Nostrand company · leaf 48

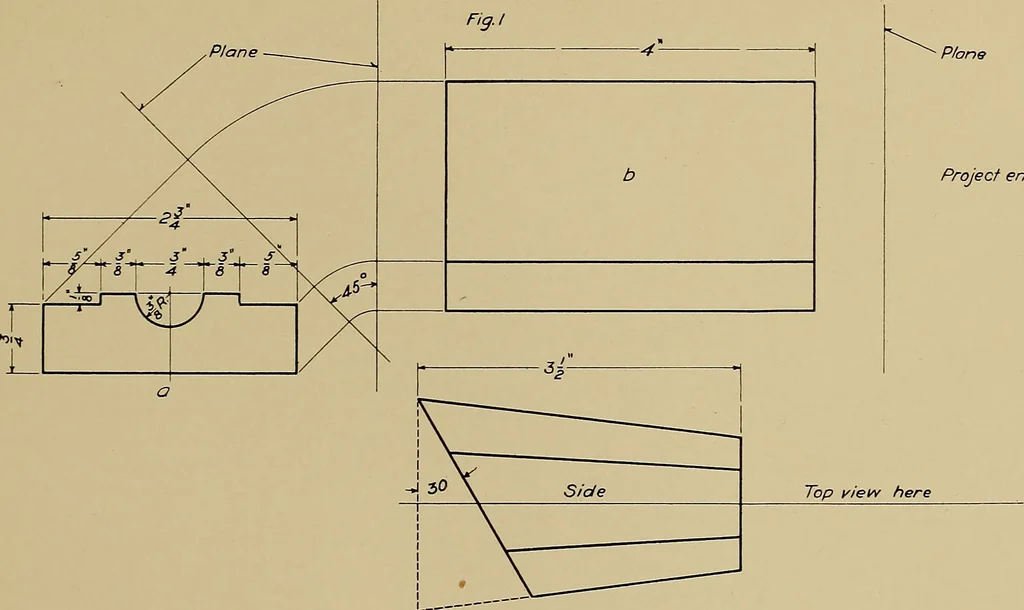

n by the dotted line. The student is expected to lay out the three views of this piece, thetop and edge views to be placed in the positions indicated on the draw-ing. Remember that this lesson is intended purely as a study in pro-jection, and do this work very carefully. If the student fully grasps… … Project end vien here,c Fig.2 Edge viev/ here CLASS Indusfria/ jraoc Machinist MAMC John i^ Roberts date Oct /O-OT^ THE CARNEGIE TECHNICAL SCHOOLS pittsburgh, pa.School of apprentices and Journeymenmechanical drawing PROBLEt^s IN Projection SCALE Full Size DWG No. 0-1013 LESSON No. 19.…
Mechanical drawing
