The Boulton and Paul P.64 mail-carrier : a two-engine all-metal biplane (1932)
NASA Technical Reports Server (NTRS) · leaf 14

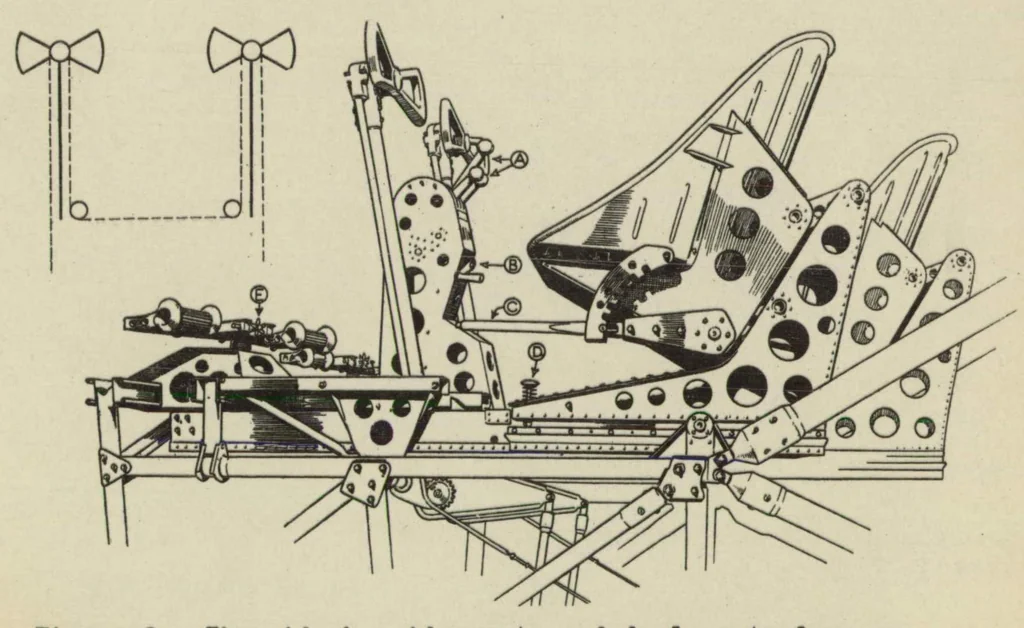

Figs.7,8 N.A.O-A. Aircraft Circular No.177 Figure 7.- The slde-by-slde seats are raised and lowered by meajis of the levers shown, while their fore-and-aft position can be varied within considerable limits when the button releases on the side frame are depressed. In addition, the r\idder bars are… … Figure 8.- The slde-by-slde seats and d\ial controls. The letter references are: A, engine controls. B, tall-adjustment handle. C, seat-raising lever. D, fore-and- aft seat adjustment. E, mdder-bar adjustment. The diagram shows the run of the aileron control over chain-sprockets on the two columns.…
