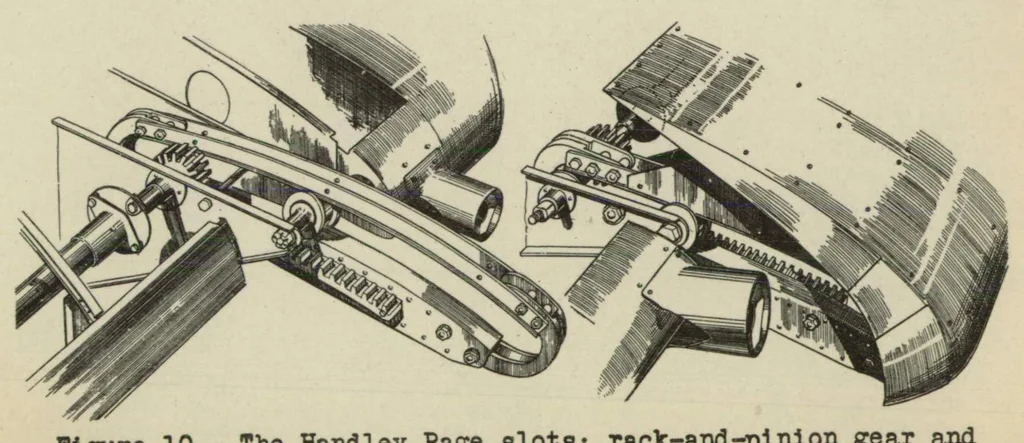

Figs.9,10 N.A.O.A. Aircraft Circular No.177 TAIL-UNIT DETAILS On the left is shown the complete tail- unit and below, is the control lever and one hinge of the rudder servo-flap. k Figure 9.- On the left is shown the inter- connection of the servo elevator Frorn control with the main elevator spar.… … Figure 10.- The Handley Page slots; rack-and^inion gear and a torque tube ensure even opening, and when the slot is closed there are no unsightly brackets projecting fron the wing. CFrom"Fhshro
