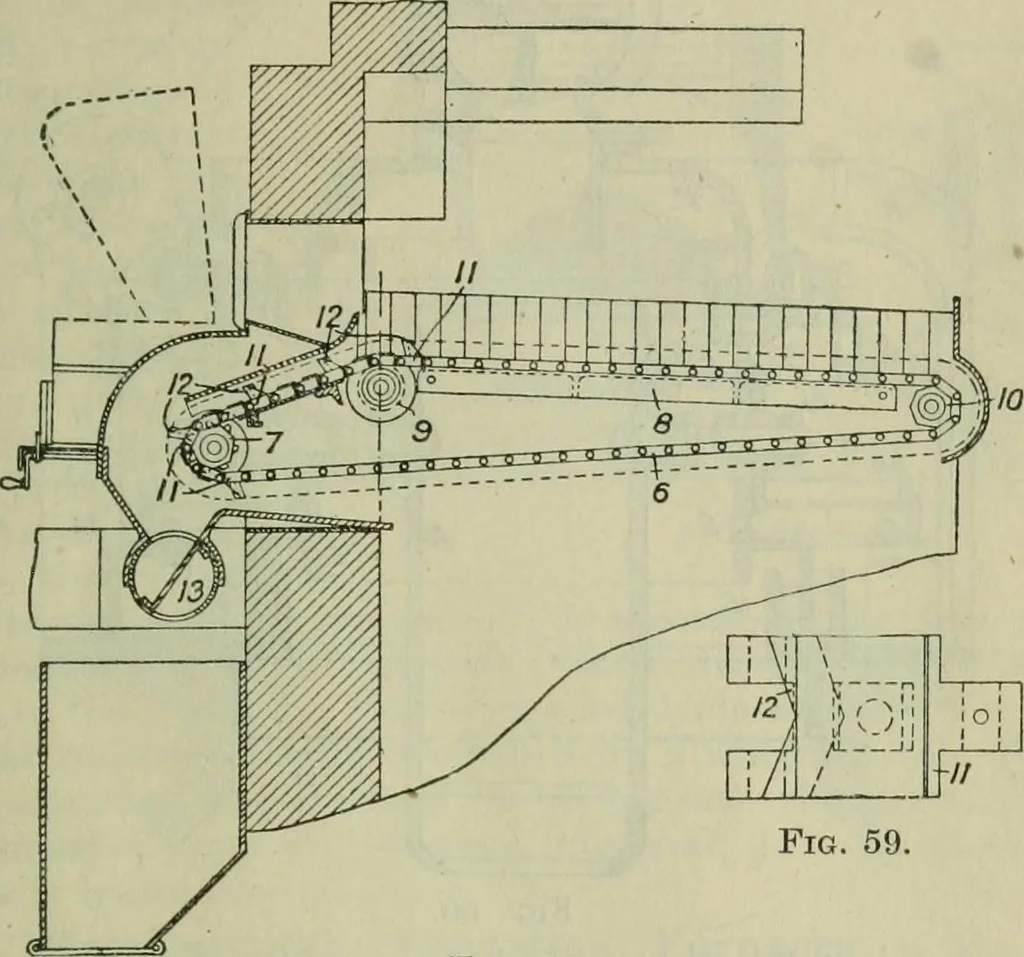

. Removing Clinker from Furnaces. C. Crockwoodand S. J. R. Allwood (Brit. Pat. No. 113190, April 24th, 1917,No. 5716).—The non-combustible residue which collects at the sidesof boiler and other furnaces is removed by means of an endlesschain or toothed-like conveyor, 6 (Fig. 58), some or all of the… … Fig. 59. Fig. 58. rollers, 9, 10, and a driving sprocket, 7, and is supported on itsupper run on a skid bar, 8. The clinker so cut off and removed isdelivered by an oscillating discharge lock, 13, to a quenching recep-tacle clear of existing ash-pits and boiler settings. Instead of anendless chain,…
