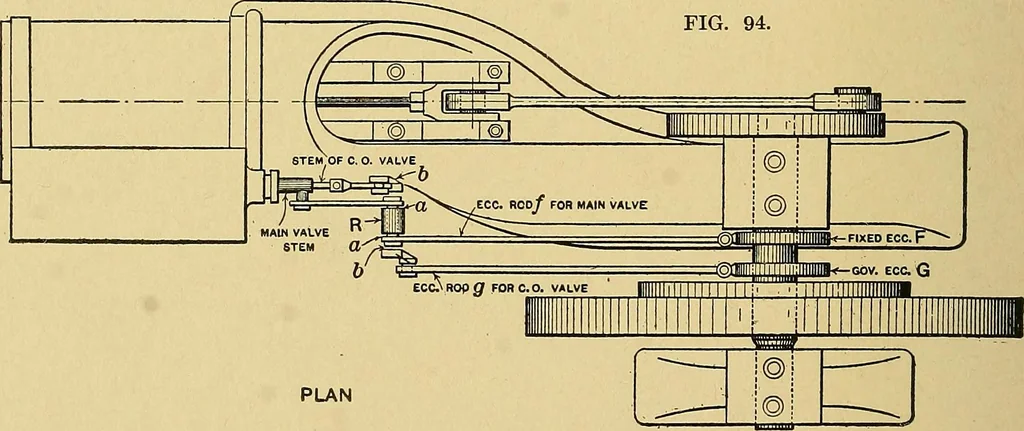

ELEVATfON FIG. 94. … PLAN FIG. 95. and a flat cut-off or auxiliary valve riding inside of the main valve. Thesingle short port at each end of the cylinder serves alternately for the pur-poses of admission and exhaust. 92 THE BUCKEYE ENGINE 93 Both valves are driven by positive valve gear. The main valve re-ceives its…
