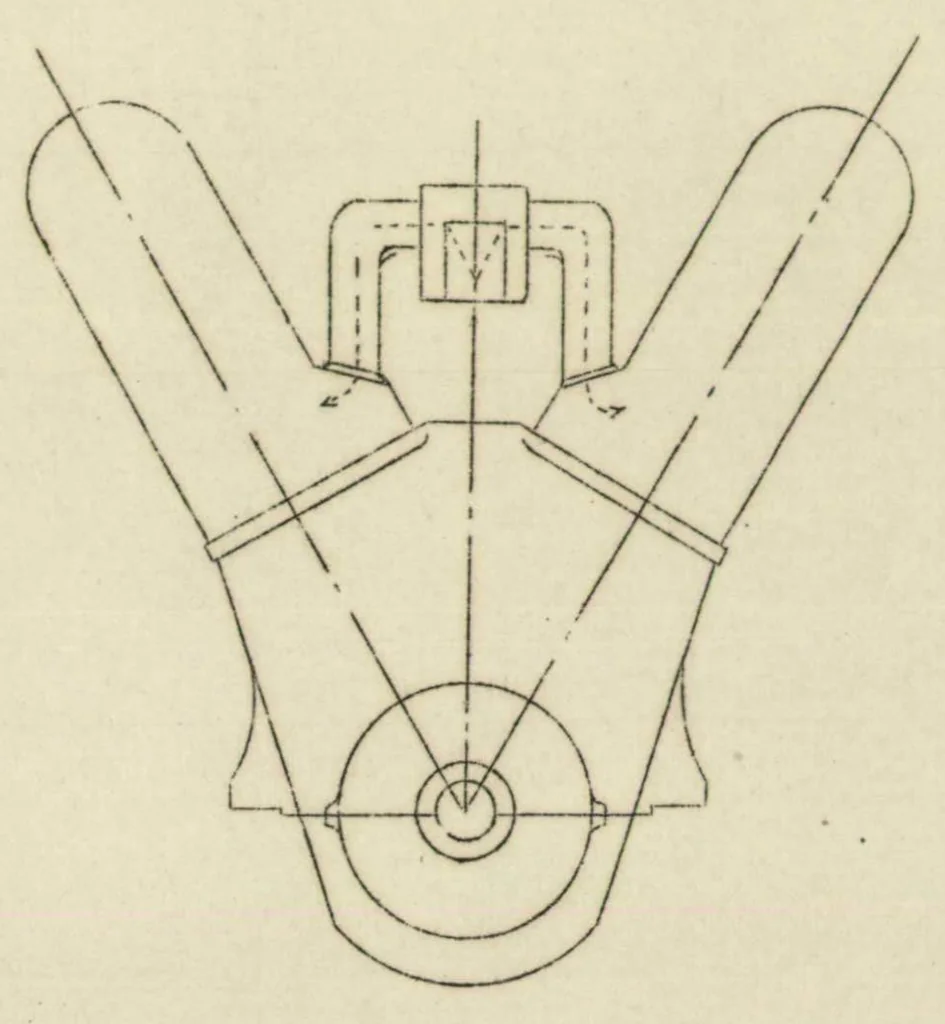

R . A. C . A. T e c ha i c 2 1 3 mo r andum No .347 Figs.14 & 15 … Fig. 14. Alimentation of a two-stroke V-engi:io by a central float-carbureter.- The path of the fresh rases, from tho carburetor to the preliminary-compression chambers is indie at eel by tho dotted lines. Note the unavoidable beads in the intake pipes, which render this device impracticable. 80 U…
