Investigation of atomization in carburetors (1929)
NASA Technical Reports Server (NTRS) · leaf 13

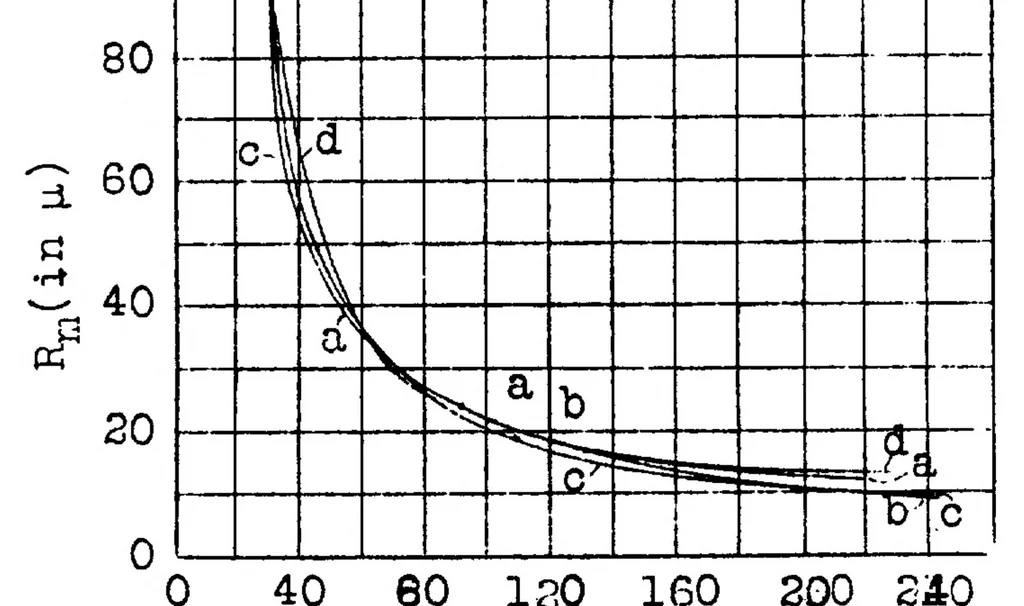

Figs.5 & 6 N.A.C.A. Technical Memorandum No.518 100 … 0 40 eO 120 160 200 SAO h3_(in ram Hg.) Air nozzle ^ 24 mm Intake pipe ^ 94 mm Comparison of Rju for different fuel nozzles. a,Main nozzle ^ 1.30 mm Equalizing nozzle <!> 0.95 mm " 1.40 " 1.30 " 0.95 " 1.20 c, " 0.80 " 0.95 Test results with Pallas carburetor ID 3H.using water, Fig. 5 120 160 h^(in…NASA Technical Reports Server (NTRS)
