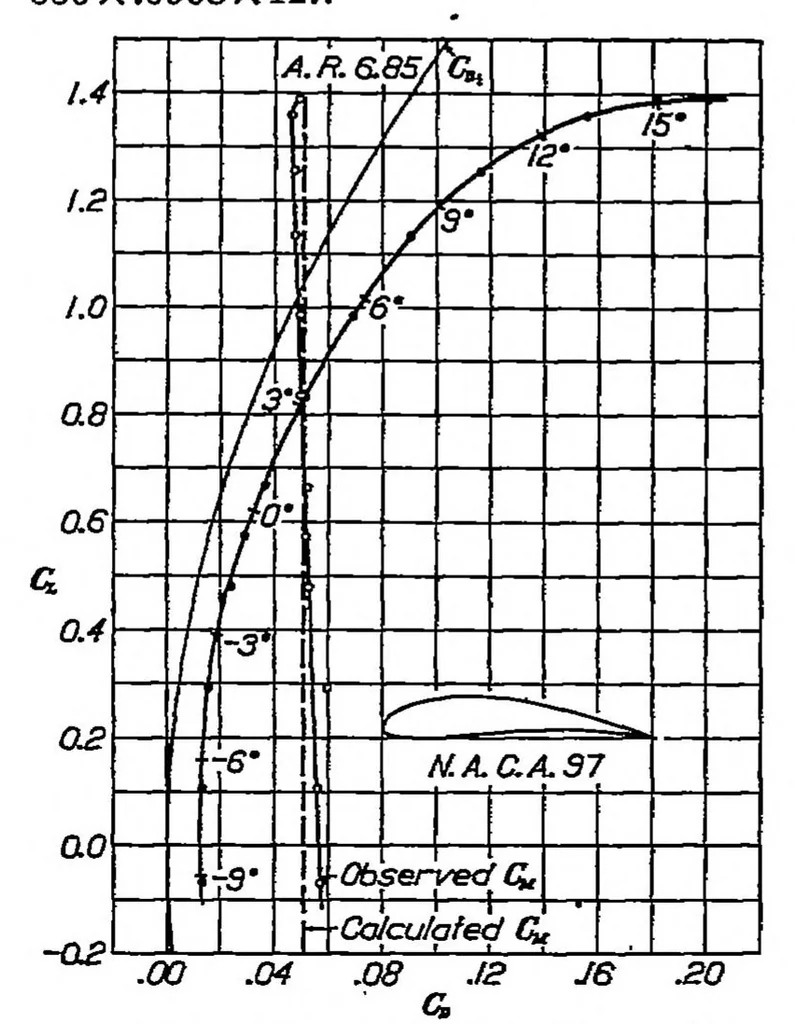

stant for all angles of attack and values of lift. When plotted against the lift, the curve will be a straight line parallel to the lift axis. M-Lxl- *™489„X^ 57.3 1+^ 4 where: M=moment about 25 per cent of chord Z=lift l- ■ lever arm = —~r 4 c = chord = 12.7 cm a*=effective angle of attack=6.216°… … a o.o -o.i -as -03 -0.4 -as , Q,(obouf quarter chord) Fio. 23.—Test 80-7. Tank pressure 15.8 atmospheres. Dynamic pressure j=5S0 kg/m». Reynolds Number 2,910,000. AirtbO with two skids The computed and the observed values of moment coefficient are shown in the chart of observed values for the N. A.…
