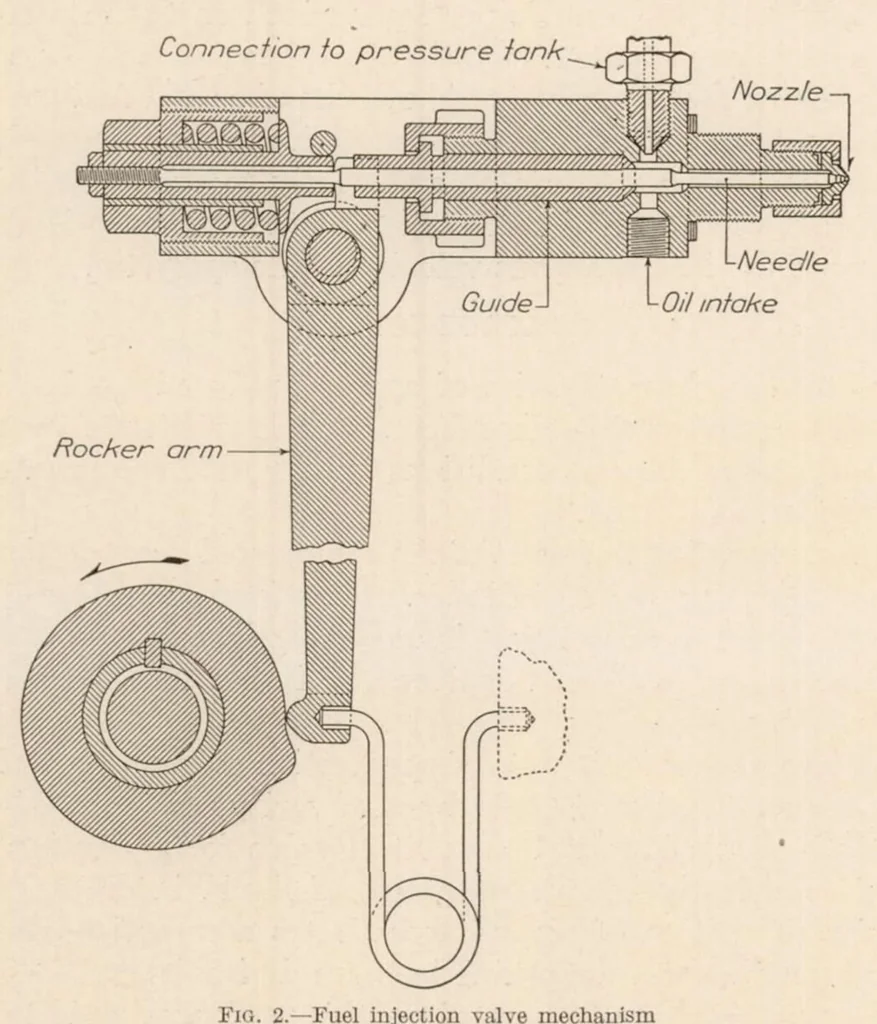

emand greater spray lengths or Oil pressure tank Fig. 1.—Diagrammatic arrangement of apparatus for production and control of spray longer time periods. Fuel pressures between 2,000 and 8,000 pounds per square inch at 1,000 pounds per square inch intervals were investigated while injecting into a… … Fig. 2.—Fuel injection valve mechanism APPARATUS AND METHOD OF OPERATION The apparatus used for producing and controlling the fuel sprays is shown diagrammatically by Figure 1. The valve mechanism is shown in more detail in Figure 2. The cam shown in these two figures was arranged to make a single…
