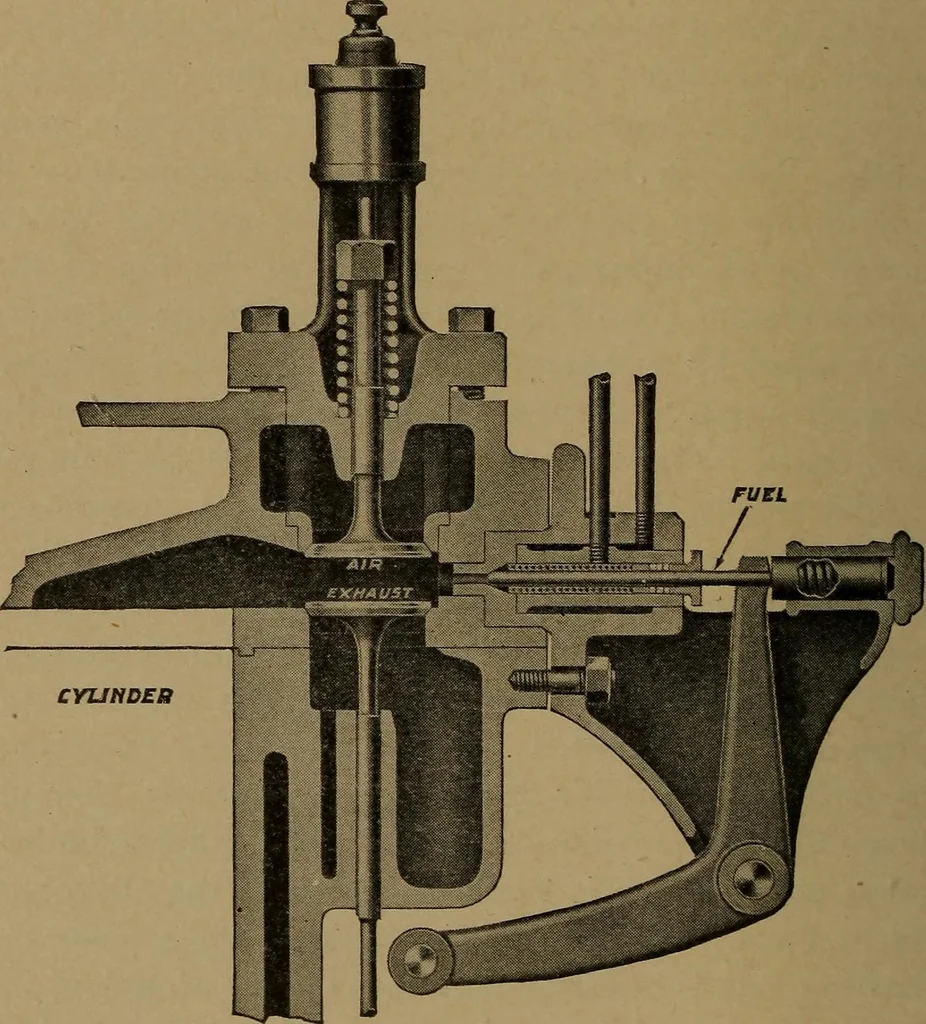

ut of action, theexhaust cam being simultaneously thrown intoaction. The admission valve for fuel and air underpressure is shown in Fig. 99. As will be seen, thevalve spindle is surrounded by a series of brass wash-ers perforated with small holes, being parallel to the 2l6 OIL ENGINES. spindle. The… … Fig. 99. admission valve the oil is sprayed into the cylinder. Thefuel enters the cylinder only after the compressionstroke is completed and when the piston is beginning LARGE-SIZED ENGINES. 217 to descend. The compression in the cylinder causedby the previous up-stroke of the piston reaches…
