Experimental and Analytical Determination of the Motion of Hydraulically Operated Valve Stems in Oil Engine Injection Systems (1930)
NASA Technical Reports Server (NTRS) · leaf 6

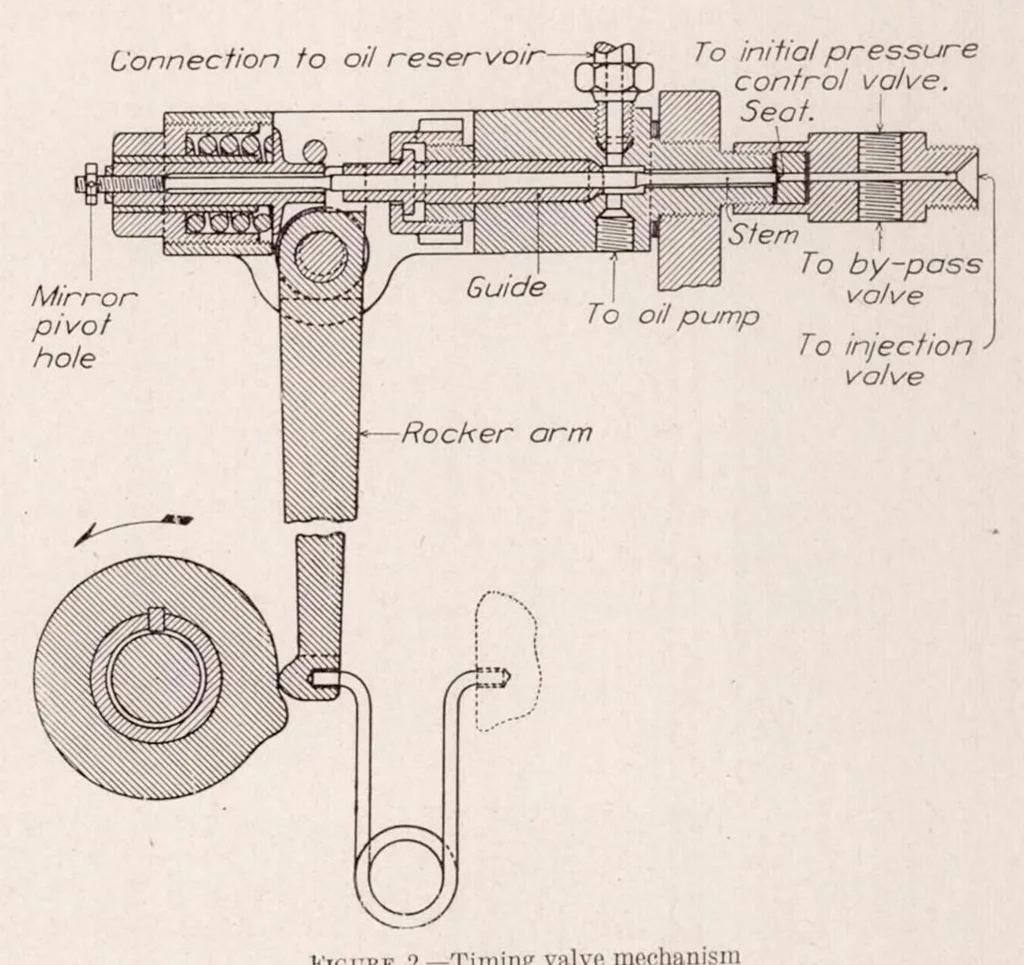

5 HYDRAULIC ALLY OPERATED VALVE STEMS IN OIL ENGINE INJECTION SYSTEMS The timing valve (fig. 2) is a spring-loaded needle valve operated by a cam and a rocker arm One half of a clutch similar to the type used in punch presses is rigidly attached to a shaft that is driven by an electric motor at 950… … operation of the valve was thus record- Figure 2— Timing valve mechanism ed on the film as a continuous line \ i ne mm u> ;i uhiuiuum^ "w. It was desired in this research to investigate the pressure variations at the timing-valve seat and in the injection tube as well as the motion of the timing…
