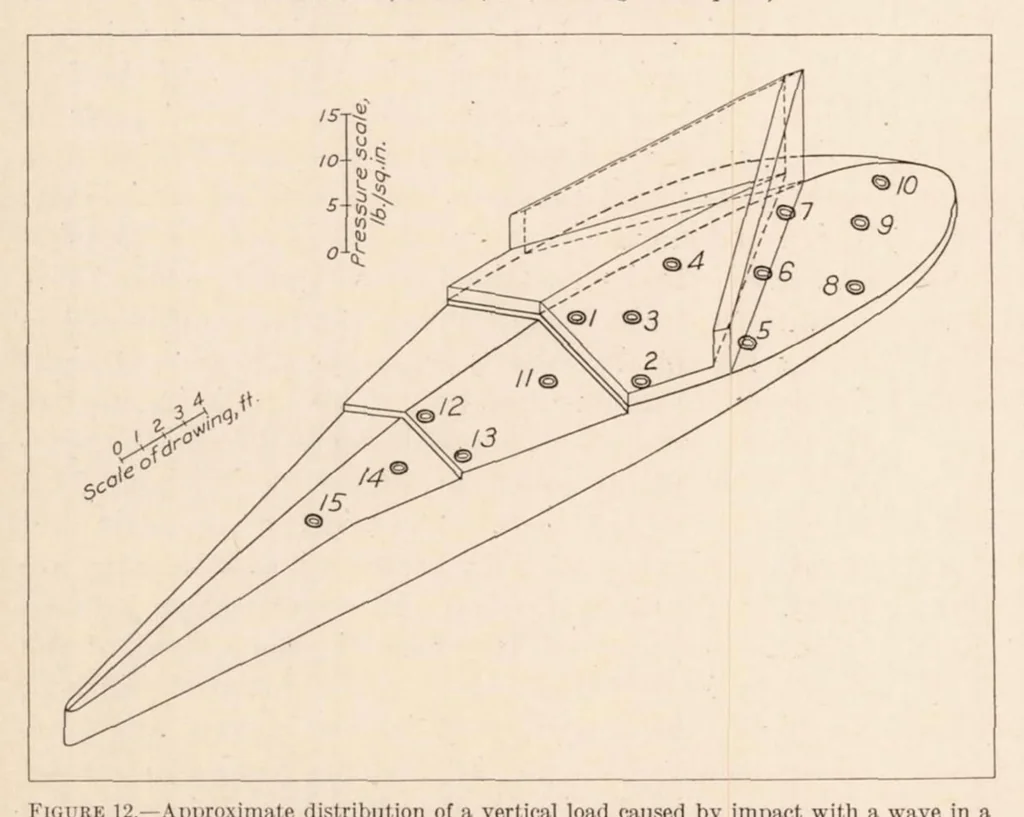

r bhan the maximum pressure on the TS-1. The distribution on the TS-1 is different than on either of the others, in that it lacks an appre- ciable transverse variation in pressure and shows very high pressures near the bow. The uni- form distribution of pressures on the area between the steps of… … vo in a The beam loads in thousands of pounds per Figure 12.—Approximate distribution of a vertical load caused by impact with a w; take-off. Total load = 30,000 lbs. (3.0 times weight of seaplane) foot of beam are 0.83 for the UO-1, 0.49 for the TS-1, and 1.00 for the H-16. It is evident per…
