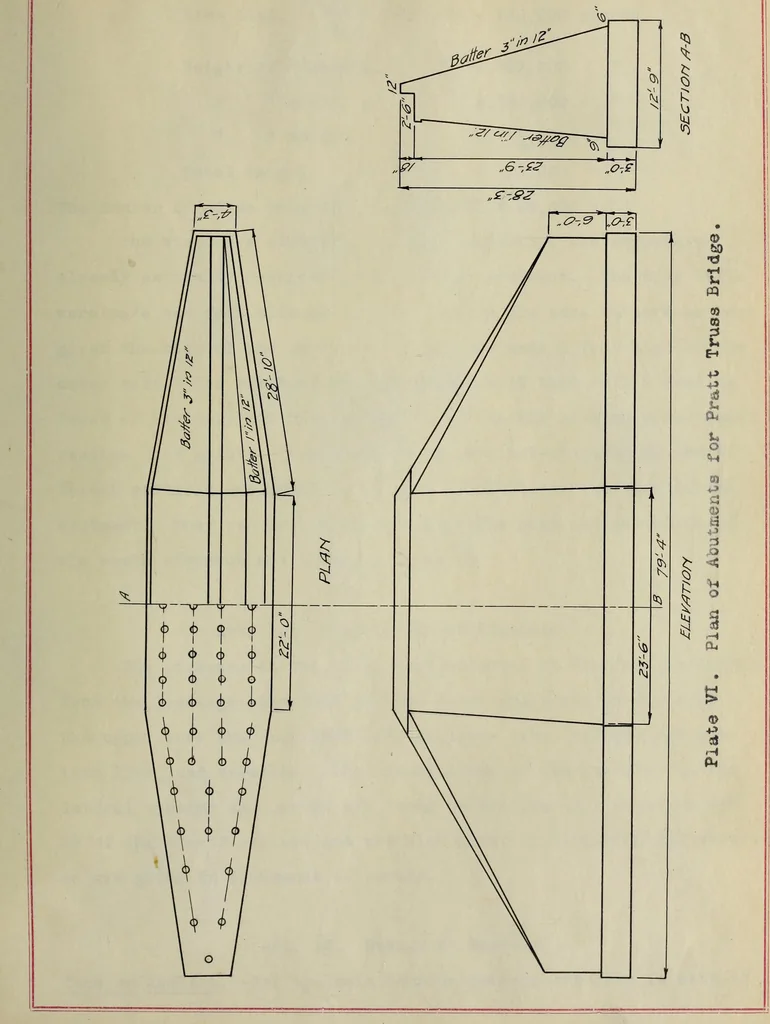

A and C, see Fig. 13,are 3.5 and 4.8 respectively. The pressures at A, B, 0, and D werefound as in Art. 6 and are 2.3; 1.3; 2.3, and 1.5 tons per squarefoot respectively. For soft clay a pressure of 2.3 tons per squarefoot is too great, so piles will need to be employed. Assuming thatthe frictional… … 31 Live Load, 1442 x 17 x 125 = 153,000 pounds. Weight of ooncrete, = 709,000 n rt earth, = 194,000 it bridge, = 62,000 Total weight, 1,118,000 •T The number of piles required is 1,118,000 -r 34,000 = 33. The wings are straight, or more correctly, the structurealready partially designed is a…
