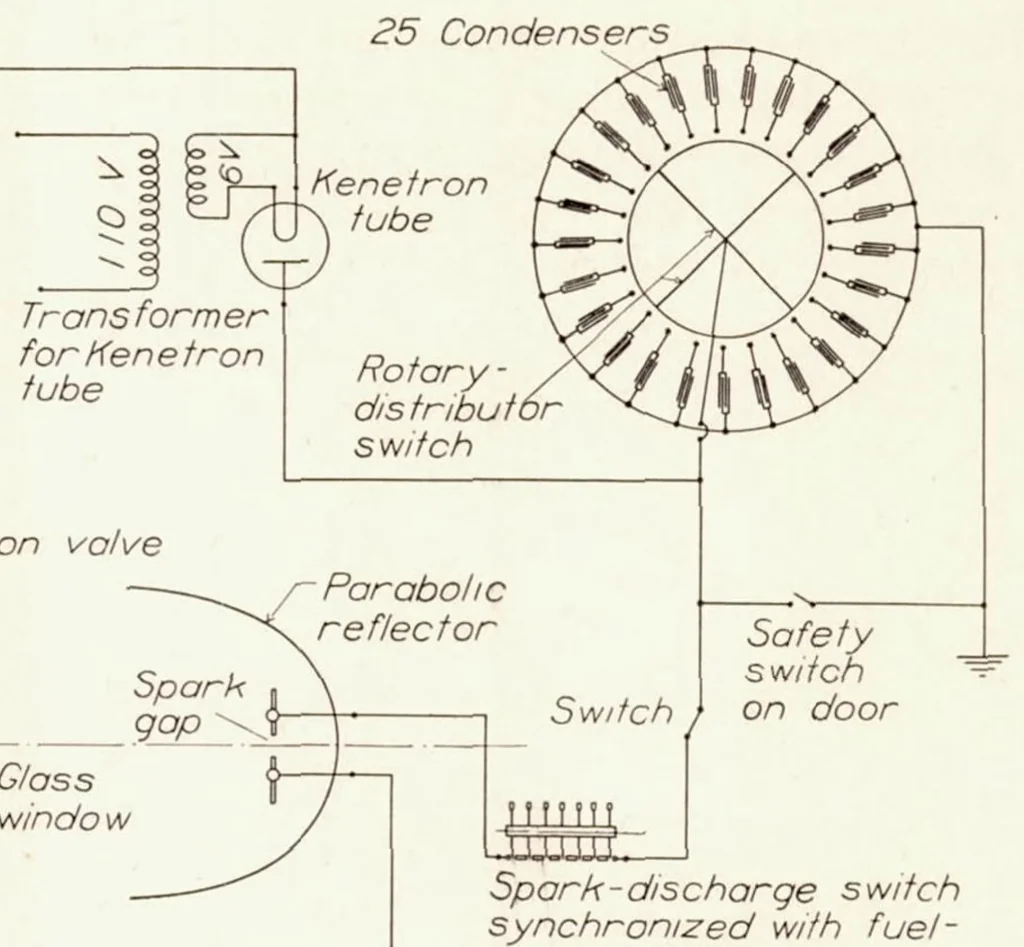

6 REPORT NATIONAL ADVISORY COMMITTEE FOR AERONAUTICS 25 Condensers … synchronized with fuel- chamber sproy discharge Shutter FIGURE 3.—Photographic apparatus When the clutch mechanism is engaged by the operating lever the first cam opens the timing valve, which releases the fuel underpres- sure in the reservoir to the auto- matic injection valve. Injection continues…
