Cyclopedia of applied electricity : a general reference work on direct-current generators and motors, storage batteries, electrochemistry, welding, electric wiring, meters, electric lighting, electric railways, power stations, switchboards, power transmission, alternating-current machinery, telegraphy, etc. (1916)
American Technical Society · Chicago : American Technical Society · leaf 326

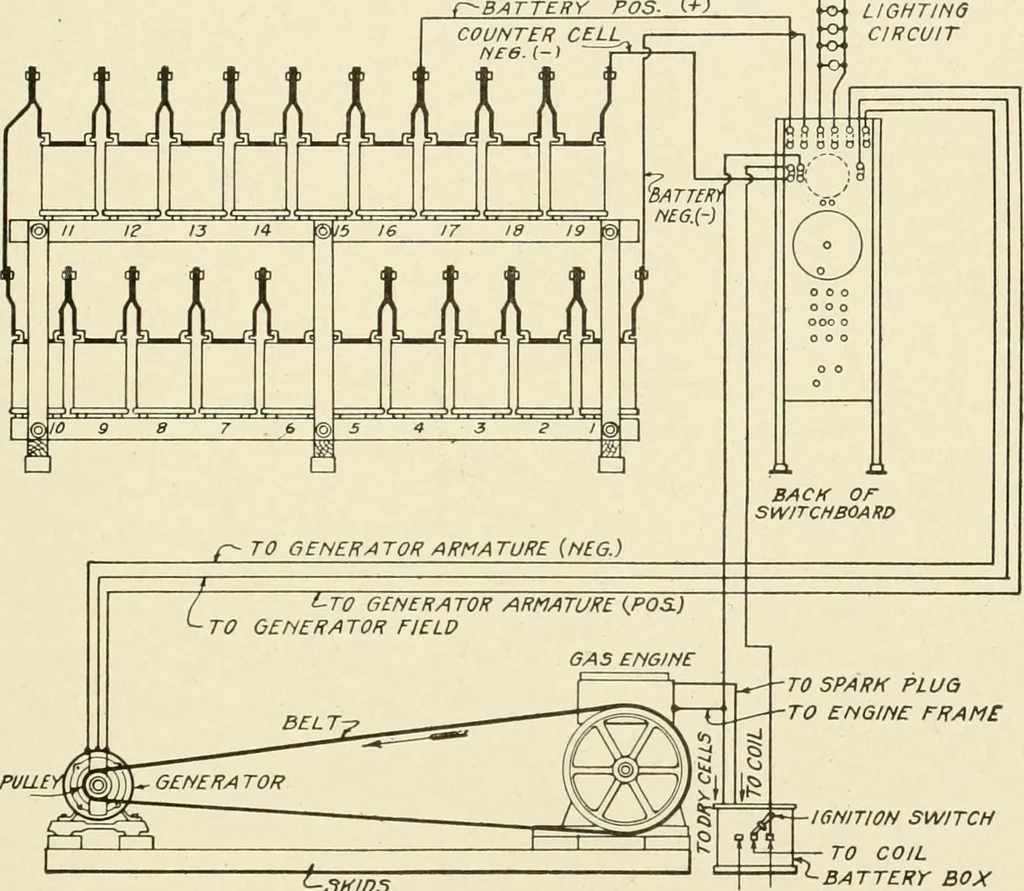

e with 290 STORAGE BATTERIES 83 the gas engine while charging; two double-pole double-throw switches;fuses, etc. Fig. 54 shows such a switchboard. The following com-binations are possible with it: to charge the battery alone withoutusing lights; to charge the battery and furnish current for a… … Fig. 57 lemriON switch TO COILBATTELRY BOXTO DRY CELLS TO COUNTER CCLLS Complete Wiring Diagram of House-Lighting InstallationCourtesy of Electric Storage Battery Company Fig. 55 shows a battery mounted on a bench, with a few countercells provided for the better regulation of the voltage. Fig.…
Electrical engineering
Internet Archive · Northeastern University Library · Public Domain Mark 1.0. Free to use for anything.
