Wiring diagrams of electrical apparatus and installations (1913)
McGraw-Hill · New York, McGraw-Hill Book Company · leaf 122

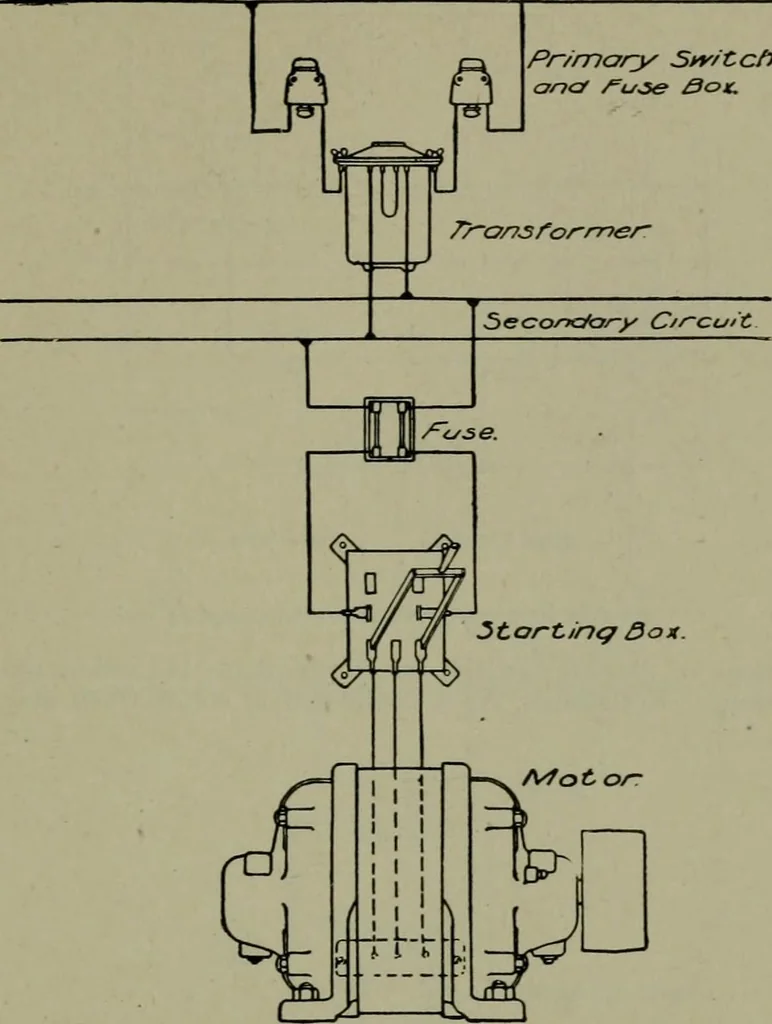

Fig. 181.—Connections for starting single-phase induction motor with three-phase wind-ing, ratings below one horsepower. When starting, throw the switch and press it against thestarting contacts until full speed is attained, then release the starting handle, which will bepushed up by the release… … Fig. 182.—Arrangement of apparatus for starting split-phase motor shown in Fig. 181. S Start ? t] [^ 9 9 k Main Thase —5k- FiG. 183.—Connections of starting switch for single-phase induction motor with two-phasewinding. Resistance, A, is connected across one phase when starting. 112 WIRING DIAGRAMS…
