Wing-Fuselage Interference, Tail Buffeting, and Air Flow About the Tail of a Low-Wing Monoplane (1935)
NASA Technical Reports Server (NTRS) · leaf 20

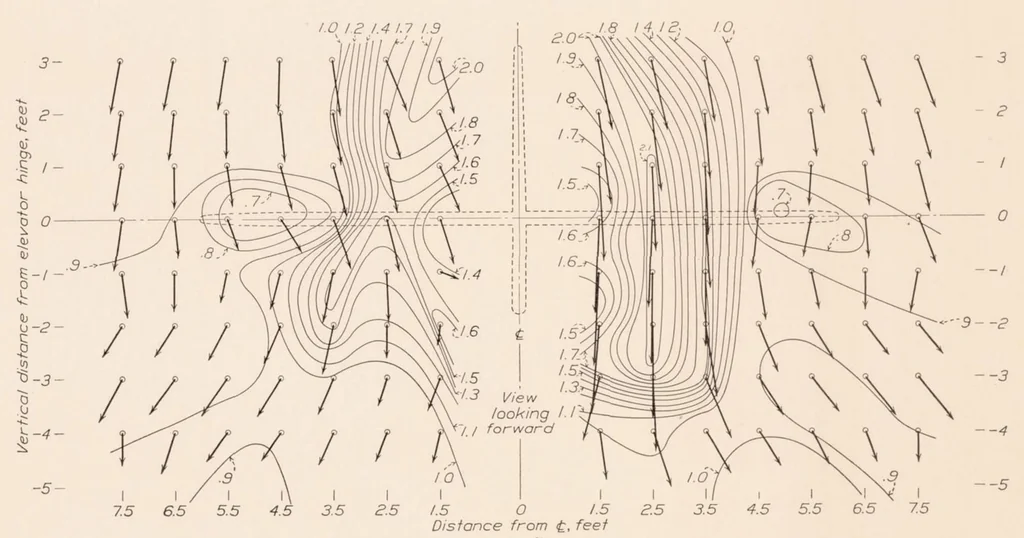

Scale of vectors „ k'.'.'ilN.'.'.iu/.'i1 Deflection in degrees ®° 10° Figure 32.—Air flow at tail of McDonnell airplane with N.A.C.A. cowling, power off. Survey in vertical plane through elevator hinge line. The contours show the ratio of the dynamic pressure behind the airplane to the dynamic… … Distance from <£, feet I ° .1 .2 .3 Scale of vectors: 7^77777777—W Deflection /0° in degrees Figure 33—Air flow at tail of McDonnell airplane in original condition, power on. Survey in vertical plane through elevator hinge line. The contours show the ratio of the dynamic pressure behind the…
