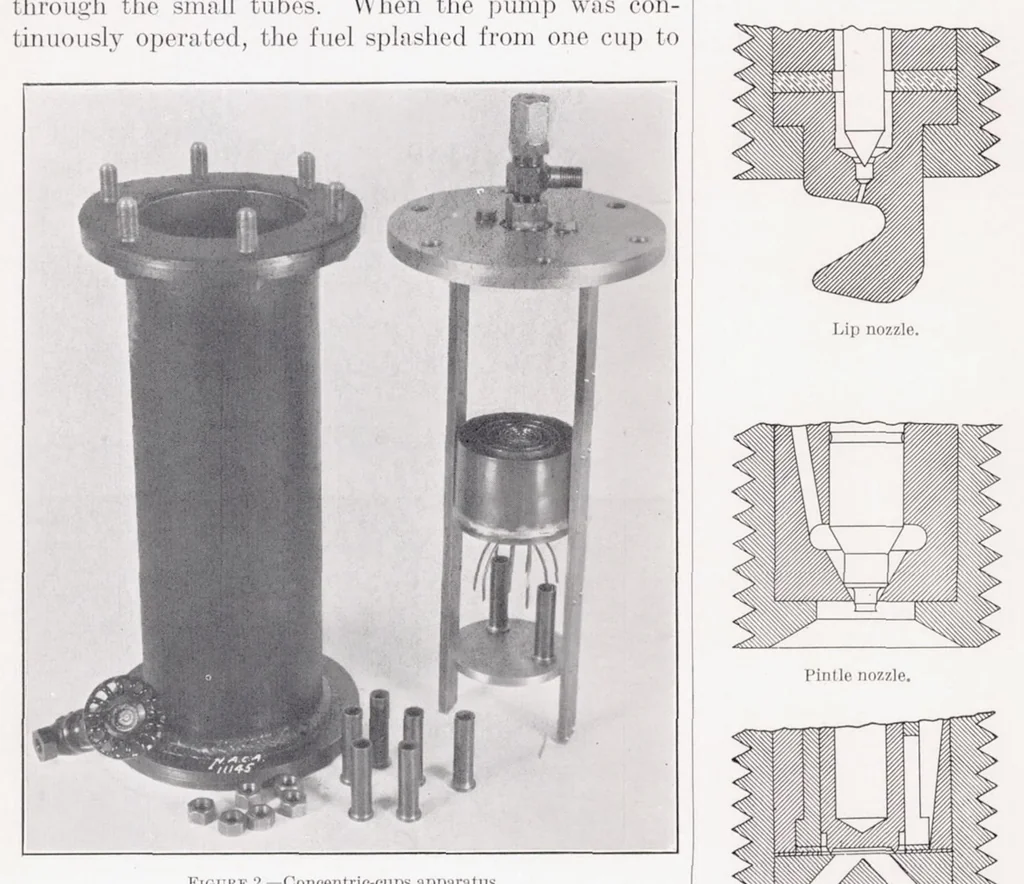

d placed in position, the entire framework was lowered into the pressure chamber and the cover bolted down. The injection tube from the pump was attached to the injection valve, and compressed air was admitted until the desired air density was reached. It was necessary to operate the injection pump… … Figure 2.—Concentric-cups apparatus. another. The cups were thoroughly drained after every 100 cycles, and the receptacles reweighed. From the weight increments, the areas of the corresponding Nozzle having an annular orifice \<;zzJ(> having two impinging jets. compartments, and the number of…
