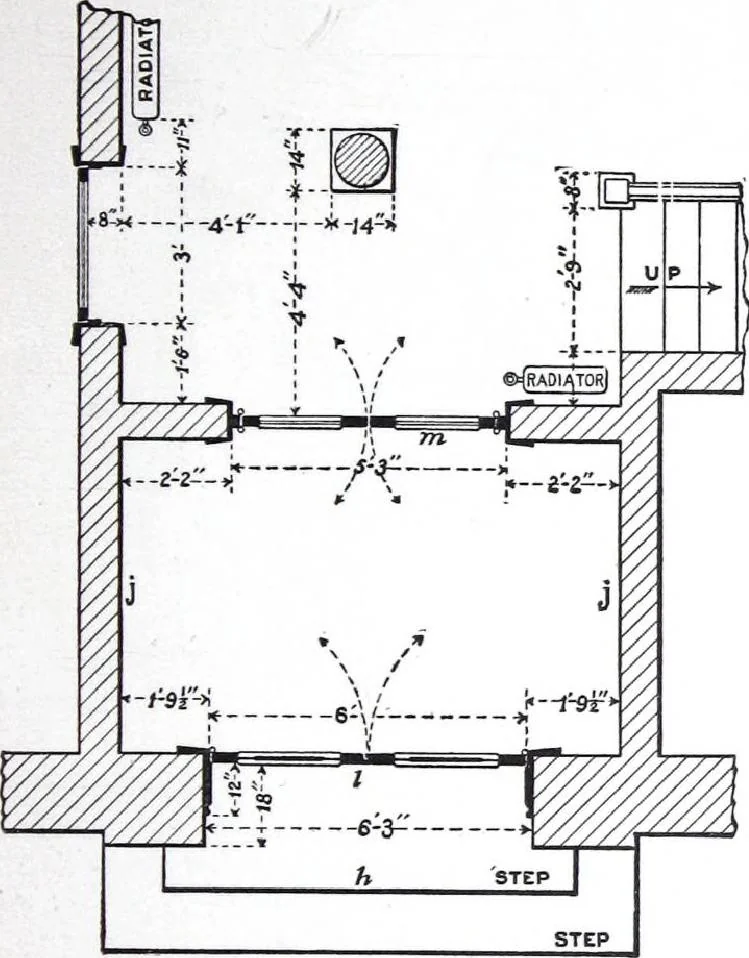

Fig. 43 44 VAN KANNEL REVOLVING DOOR COMPANY DIRECTIONS FOR TAKING MEASUREMENTS OF STREET ENTRANCE _ The following is a Specimen Dia^ramof an entrance (looking down on the floor)which is used here only as an illustration or guide in connection with questions and remarksgiven below. (See page 44—How… … 7. 8. 9. 10. 1. Give distance from thedoors 1 (when closed) out tofirst step h (or any variation oflevel) and state number ofsteps. Also distance betweenCO umns or other permanentobjects that may be outside theentrance. 2. Distance from outerdoors 1 (when closed), in tothe nearest object, such as…
