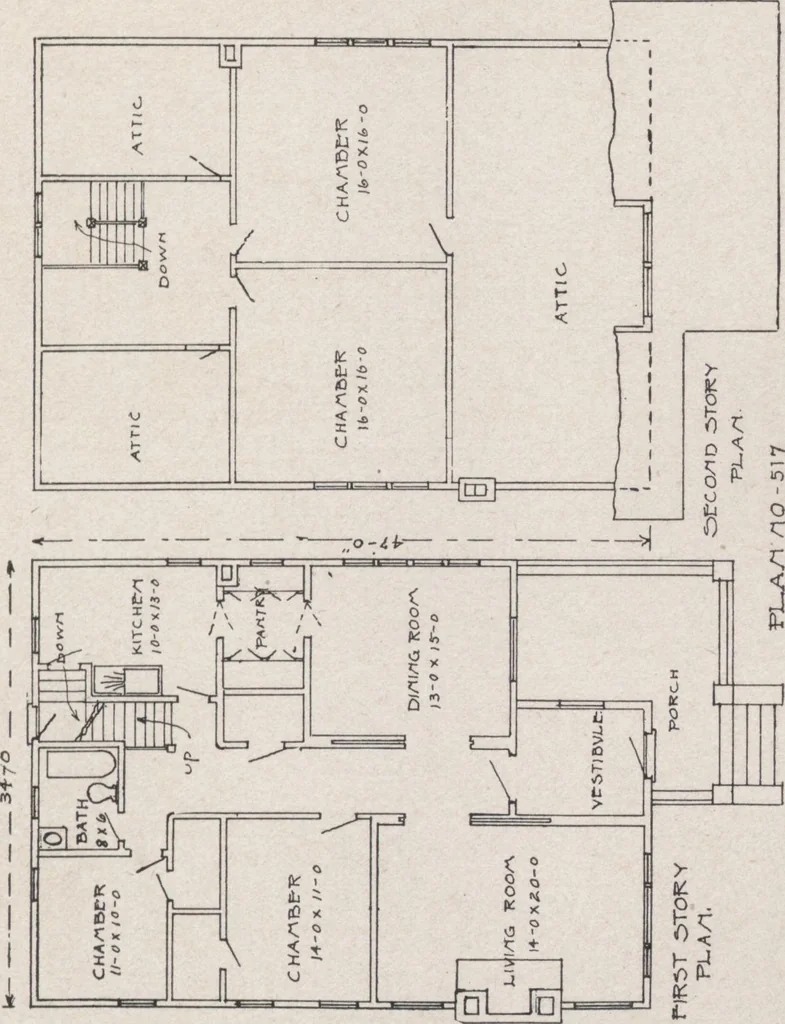

PLAN NO. 517 This bungalow 34 front by 47 deep, has — rooms, bath room and plentyof closet room. The height of the ceilings are: Basement 8, first floor 9,and the second floor 8. Cost of plans, $20.00. Cost of building, about $4,000.00. DWELLING HOUSES AND BUNGALOWS 103 … 164 lin ft. 6 x 8 for sills 2 x 10 X 18 for first floor joist 8 2 x 10 X 16 80 2 x 10 X 14 20 2 x 10 X 12 10 2 x 10 X 10 10 2 x 10 X 16 for second floor joist 80 gw x 10 X 14 20 9// x 10 X 12 12 2 x 10 X 10 30 2 x 4 X 18 for ceiling joist 20 2* x 4 X 16 10 2 x 4 X 14 (Continued on next page.) 104…
