Meadowcroft, Wm. H. (William Henry), b. 1853 · New York & London, Harper & brothers · leaf 82

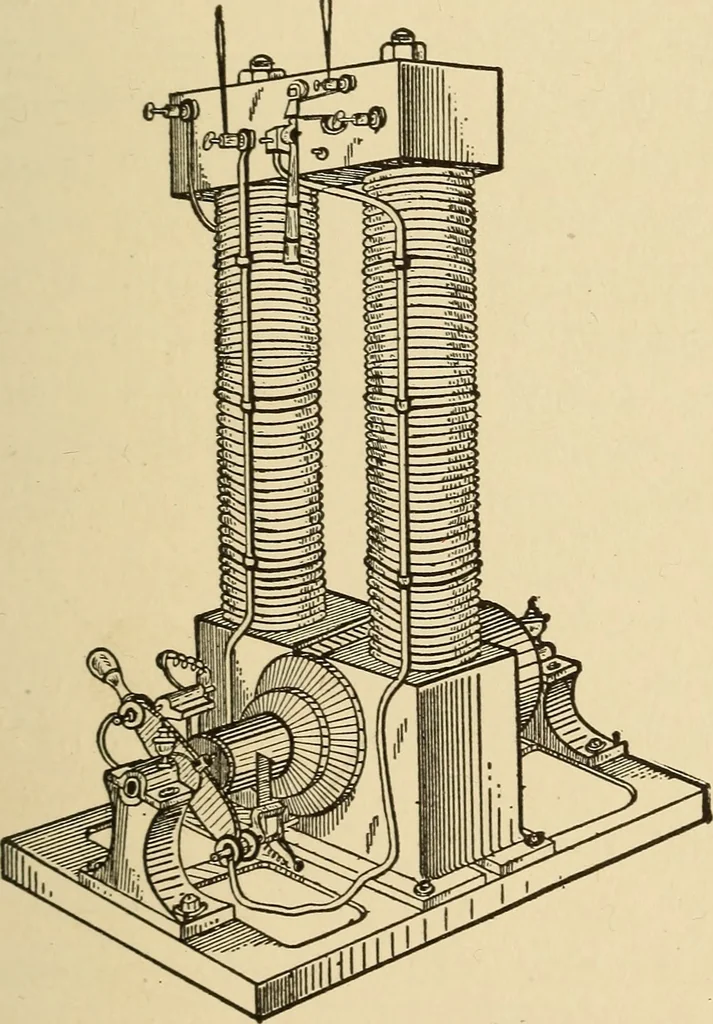

we leave off winding, whichon the two cores together will make four endsof wire. We will tell you presently what isdone with them. After the cores are wound, they are screwedfirmly to the yoke and to the pole pieces, soas to make, for all practical purposes, one 64 ELECTRIC LIGHT whole piece pretty… … Fig. 21 by two bearings, which you will see inthe sketch of the complete dynamo above.(Fig. 21.) A-B-C OF ELECTRICITY The armature in a practical dynamo-ma-chine consists of a large spool made of thinsheets of iron firmly fastened together andhaving a steel shaft run through the center,upon which…
Electricity
