The A B C of vacuum tubes in radio reception; an elementary and practical book on the theory and operation of vacuum tubes as detectors and amplifiers. Explains non-mathematically the fundamental principles upon which all vacuum tube circuits are based. Includes practical circuits and practical questions and answers. It is written especially for the beginner. All electrical and radio terms are fully explained (1922)
Lewis, Elmer Hugh, 1889- · New York, Norman W. Henley Pub. Co. · leaf 15

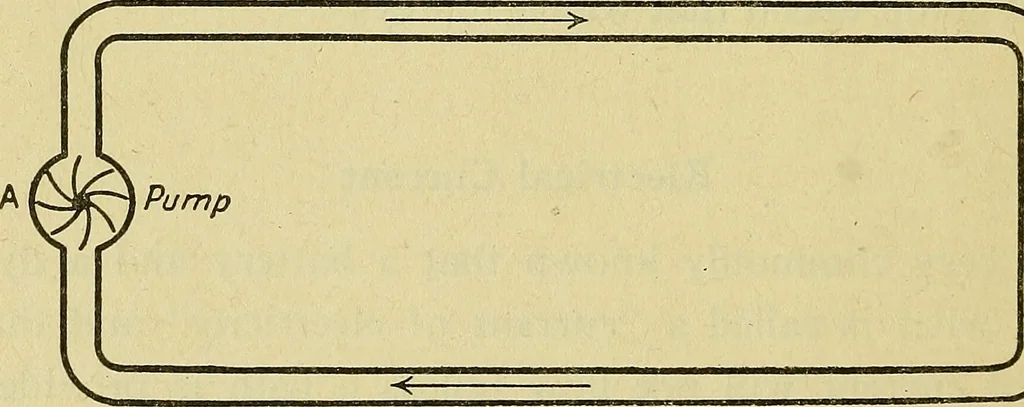

it flows in all parts ofthe circuit when it is closed. Thus, if the current flows fromthe battery at A it must return to the battery at B. Theterminal of the battery from which the current flows is called \Push Button Contacts PositiveTerminal- B & Bell - Negative Terminal BatteryFig. i—Simple… … Fig. 2—Water analogy of simple electrical circuit. pipe is considered to be full of water. When the pump isoperated the water will be forced to flow, let us say, in thedirection of the arrow. It flows from the pump through thepipe and returns to the pump and the same amount of waterwhich leaves the…
