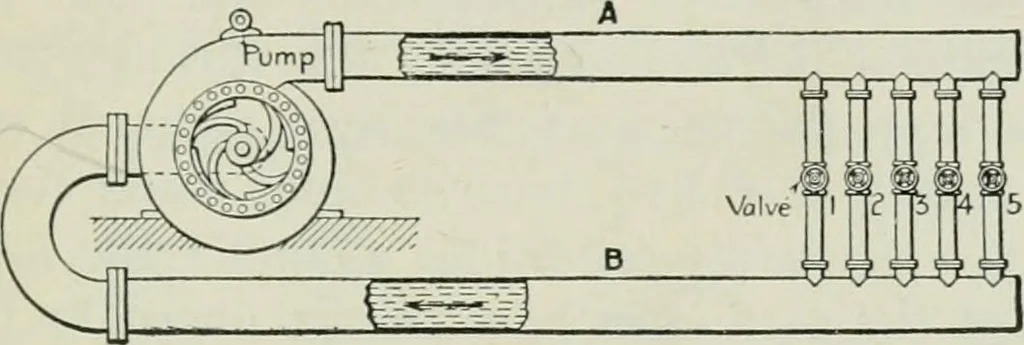

erminal.Hydraulic Analogy of Parallel Circuit.—Pig. 77 shows a hydrauHcanalogy of Fig. 76, where the intake and discharge of a pump are con-nected to two large pipes, which are connected together by several smallpipes. If the system is full of water and only valve No. 1 is open, acurrent of water… … Fig. 77.—Water analogy of five circuits in parallel. That is, a given quantity of water flows down pipe A, one-half of it passing through connection No. 1 and the other half through connection No. 2, where the two currents join and flow back through B to the pump; this is identical to the flow of…
