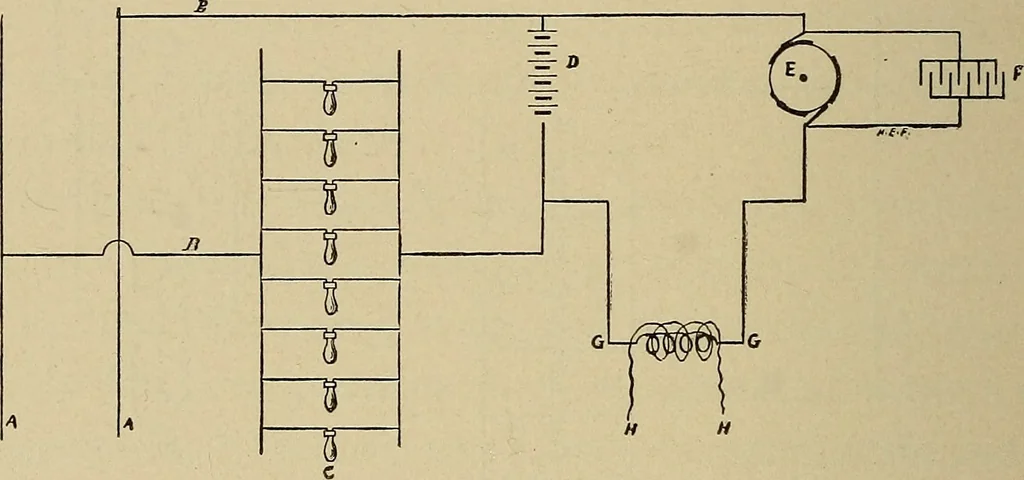

^ consist simply of two leadplates immersed in a solution of one part of sul-phuric acid to ten parts of water. Of course thelead plates in each cell should be kept separatefrom each other and all of the cells connected inseries, as shown in the diagram. … Fig. $6. AA, Main lines; BB, GG, Branch lines; C. Bank of lamps ; D,Storage cells ; E, Rotary contact breaker ; F, Condenser ; HH, Termi-nals of secondary coil. In operating an induction coil upon the electriclight circuit according to the methods shown bythe diagrams, the amount of electrical…
X-rays
