Greene, Charles E[zra] 1842- [from old catalog], Greene, Albert Emerson. [from old catalog] · Ann Arbor, Mich., Printed for the author · leaf 149

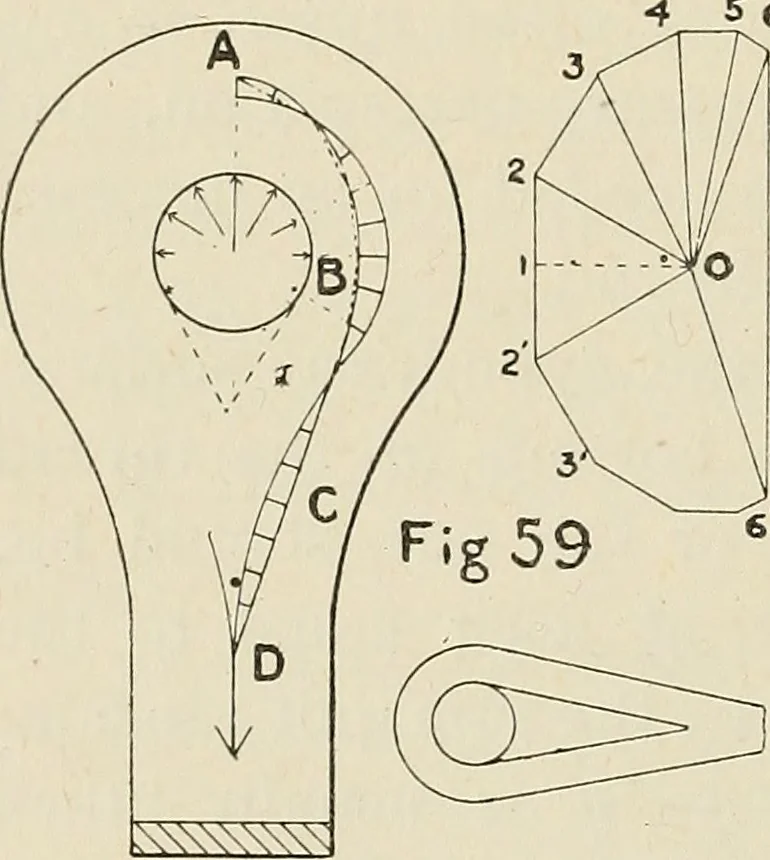

it were not for the weld and the excess of metal oneither side of the pin, such a form of eye would be a satis-factory one. If Jo is the deviation of the force from the centre of sec-tion at A or B, Fig. 59, the half width being jj and the pullo-i or 0-4 being P, the unit stress at the extreme… … PIECES UNDER TENSION. I37 to give sufficient bearing or compression area back of the pin.The right section through the eye exceeds that of the bar from33 to 50 per cent. Examples.—t. A round bolt i^ in. in diameter carries a loadof 20,000 lbs. As its head is not square to its length, the centreof…
Mechanics, Applied · Strength of materials
