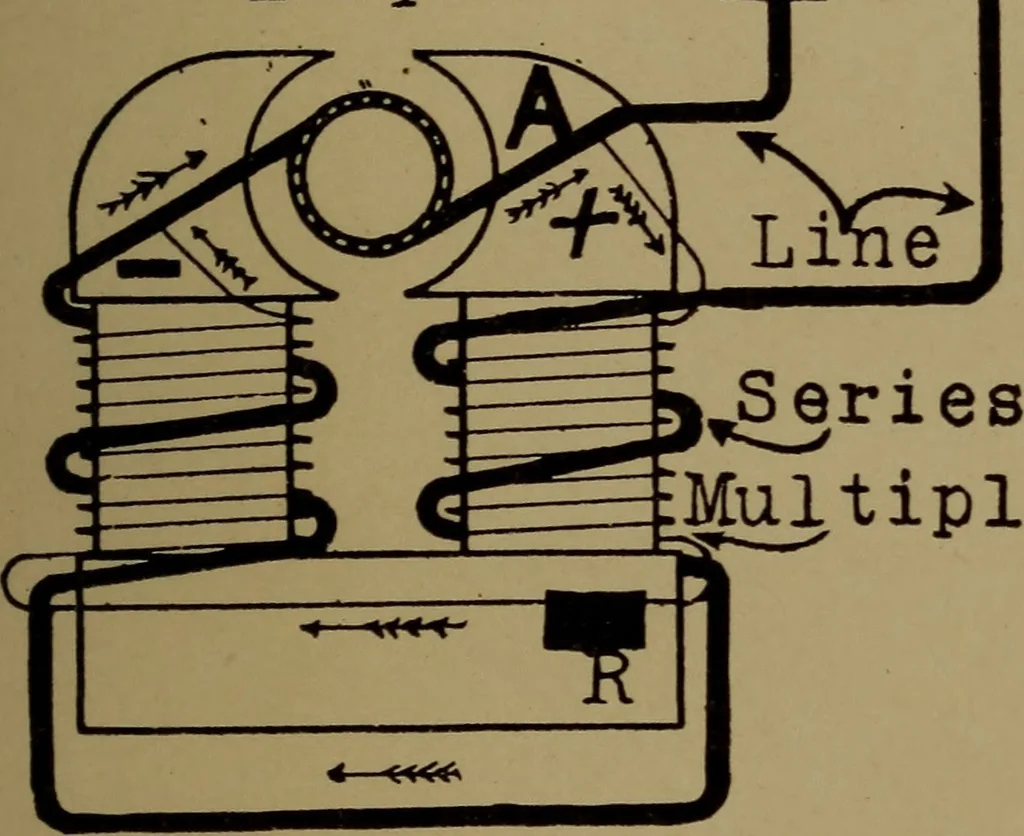

ion of flow of current in both the armature coilsand the field coils will not reverse the direction of therotation of the motor, but to change the direction offlow of current in either the field or armature and let 16 Actions of Electricity. the other remain will change the direction of rotationof… … ■Multiple Figure 8.—compound wound dynamo. Fig. 8 shows clearly the connections of a compoundwound generator. The current produced in the arma-ture leaves at A and flows to the lamps through theline returning from the lamps flowing through theseries field winding and back to the armature. Theshunt…
