Aeroplane construction and operation; including notes on aeroplane design and aerodynamic calculation, materials, etc. A comprehensive illustrated manual of instruction for aeroplane constructors, aviators, aero-mechanics, flight officers and students. Adapted either for schools or home study (1918)
Rathbun, John B · Chicago : Stanton and Van Vliet Co. · leaf 231

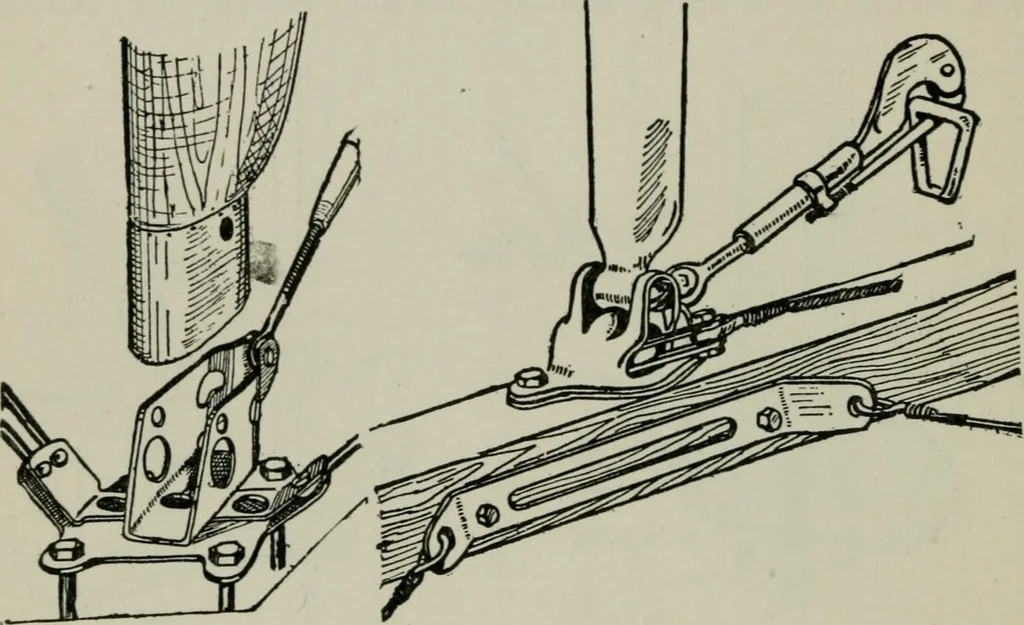

ided with rust proof eyelets. This 224 WING DETAILS relieves an excess of pressure due to rips or tears; oneopening being located between each rib and next to thebody. Protection of Wing Wood Work. In protecting thewood framework of the wings from the effects of moisture,at least three coats of… … Fig. 12c. A Standard H-3 Interplane Strut Socket Is Shown at the Left,the Bolts in This Case Passing on Either Side of the Spar. Notethe Stay Wire Attachment Clips and Pinned Strut Connection.A German Strut Socket at Right. Courtesy Aerial Age. water. The steel parts of the wing should be given…
Airplanes
Internet Archive · California Digital Library · Public Domain Mark 1.0. Free to use for anything.
