Aeroplane construction and operation; including notes on aeroplane design and aerodynamic calculation, materials, etc. A comprehensive illustrated manual of instruction for aeroplane constructors, aviators, aero-mechanics, flight officers and students. Adapted either for schools or home study (1918)

Rathbun, John B · Chicago : Stanton and Van Vliet Co. · leaf 301

An illustration from Aeroplane construction and operation; including notes on aeroplane design and aerodynamic calculation, materials, etc. A comprehensive illustrated manual of instruction for aeroplane constructors, aviators, aero-mechanics, flight officers and students. Adapted either for schools or home study, 1918, leaf 301

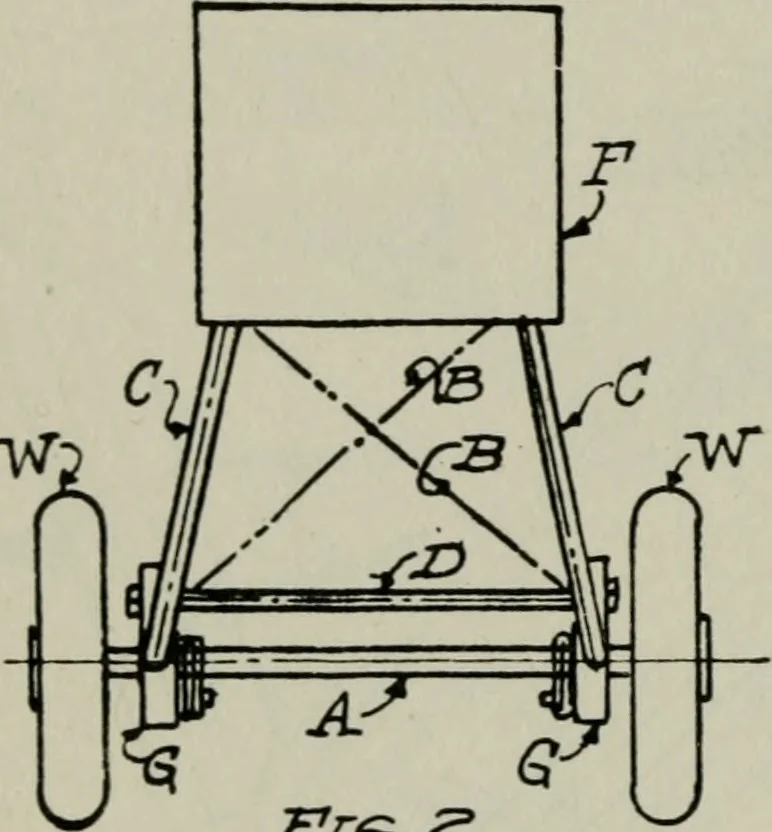

TION A, and the struts are braced against side thrust by thecross-tube D and the stay wire braces B-B. In Fig. 3the metal fitting G is provided with the guiding slot S forthe axle A. The elastic rubber cord absorber passes overthe axle and is fastened to the plate G by the studs I.Fig. 4 is a side…
