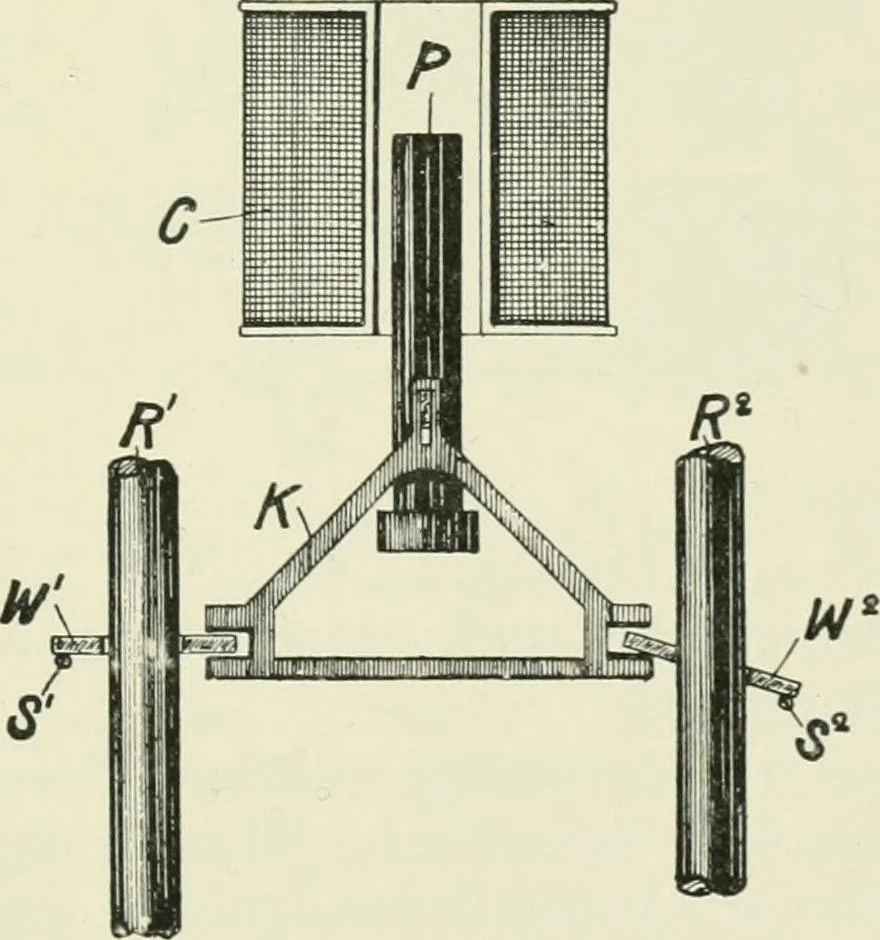

ontact with S^ releases the rod and it slips through, thus feedingthe carbon forward. The coils are wound differentially with amain and shunt wire acting oppositely to each other. Fig. 214 is another diagram of a clutch mechanism designed bythe author. The rod R carries the carbon and feeds through… … Fin. 213.—Brush Lamp S^ lower than stop S\ Now as Principles of Arc Lamps Pj by shunt coil S. The current in I\I pulls the clutch up andstrikes the arc ; the shunt coil pulls against the main coil, so that they balance when the arc isthe proper length, and thus thearc is regulated. The maincore has…
