Aeroplane construction and operation; including notes on aeroplane design and aerodynamic calculation, materials, etc. A comprehensive illustrated manual of instruction for aeroplane constructors, aviators, aero-mechanics, flight officers and students. Adapted either for schools or home study (1918)
Rathbun, John B · Chicago : Stanton and Van Vliet Co. · leaf 304

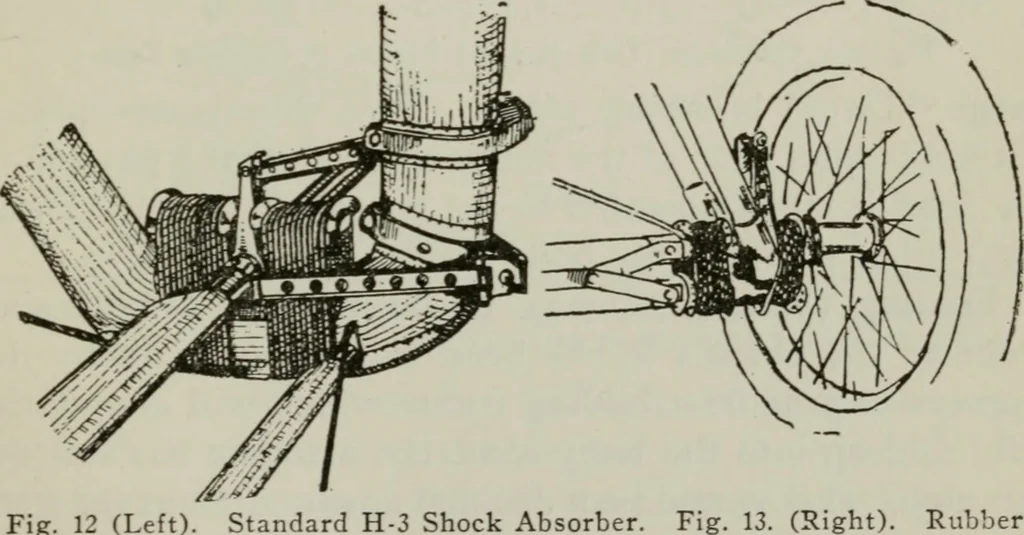

Fig. 11. An Old Type of Curtiss Exhibition Chassis With Three Wheels. … Fig. 12 (Left). Standard H-3 Shock Absorber.Cord on Axle. (Right). Rubber wrapped in continuous turns between the axle hangerand the bottom of the Vee support members. As shown,the upper streamlined bar is the axle, while the lower isthe cross bar brace which serves to hold the lower endsof the Us.…
Airplanes
