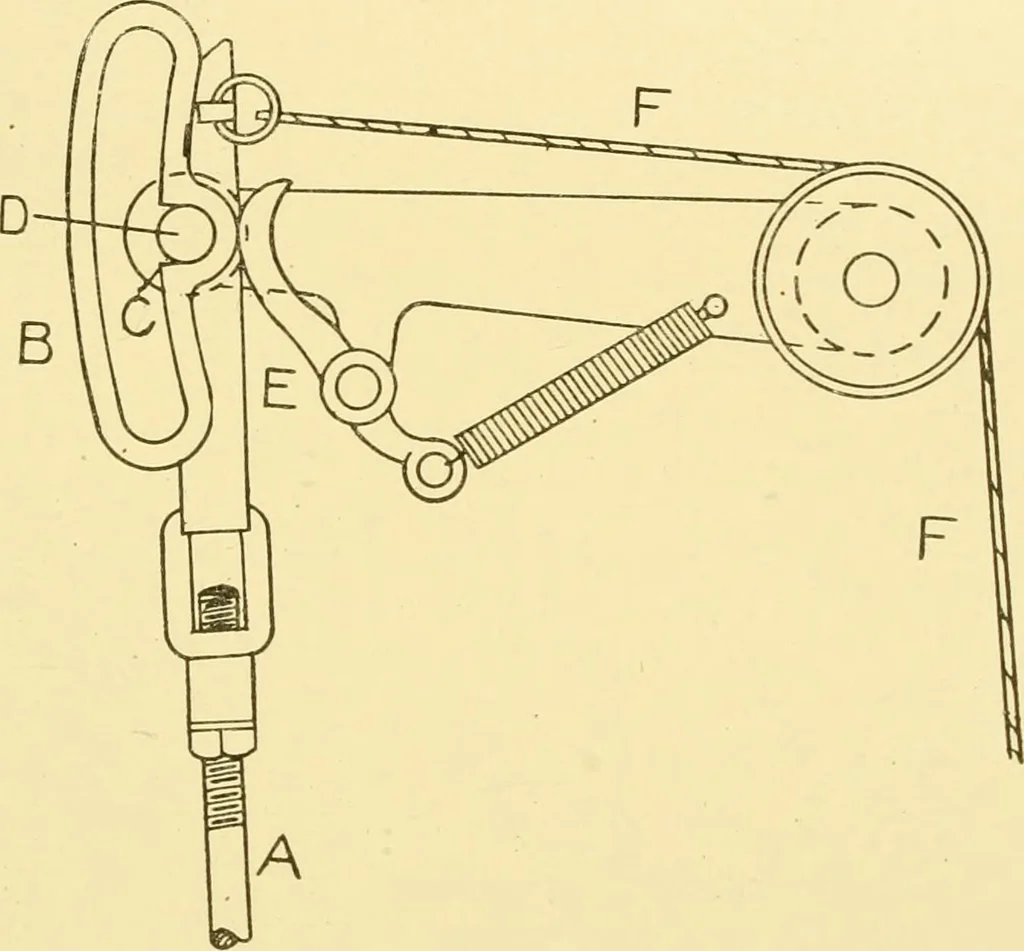

9 good example on wliieli to work. The iiiaiii facts to be borne inmind are that the single lever will raise or lower one box and tliecompound lever will raise or lower two boxes. A riser placed on tlie chain to actuate the single lever willlift the boxes from first to second; a riser placed on the… … Fig. 111. Disconnecting Device. place, build as follows: To return from fourth to second ariser under the single lever; fourth to first, a blank bar; third tosecond a riser under the smgie lever; second to fiist, a blank bar,fourth to third, a riser under the compound. The boxes are in theregular…
