Aeroplane construction and operation; including notes on aeroplane design and aerodynamic calculation, materials, etc. A comprehensive illustrated manual of instruction for aeroplane constructors, aviators, aero-mechanics, flight officers and students. Adapted either for schools or home study (1918)
Rathbun, John B · Chicago : Stanton and Van Vliet Co. · leaf 338

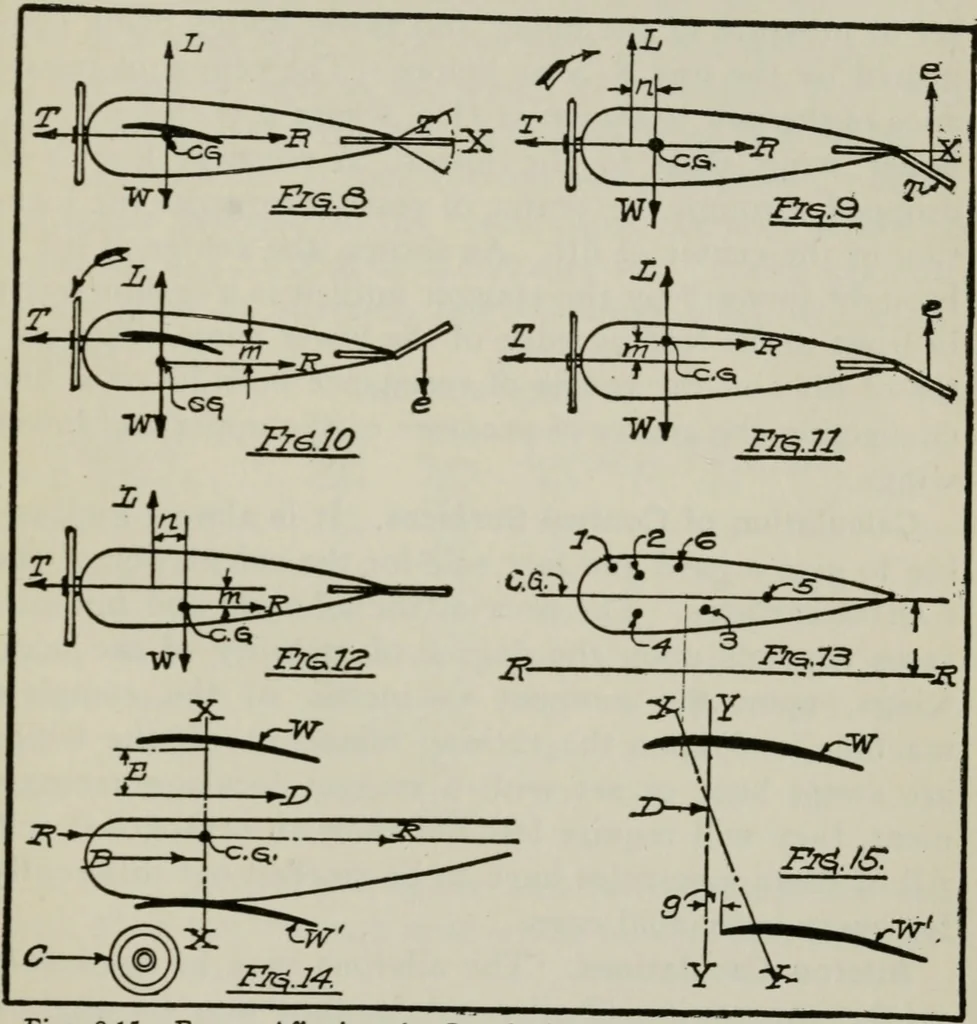

g the products of theweights by the distance from a reference line such asR-R. The center of resistance is the effective center ofall the resistance producing items such as the wings,body, struts, chassis, etc. STABILITY 327 A suggestion of the method employed in obtaining thecenter of resistance… … Figs. 8-15. Forces Affecting the Longitudinal Stability of an Aeroplane. of biplane wings (W-W) does not lay midway betweenthe wings but rather closer to the upper wing, as shownby (E). This is due to the upper wing performing thegreater part of the lift. In locating the center of resist-ance, the…
