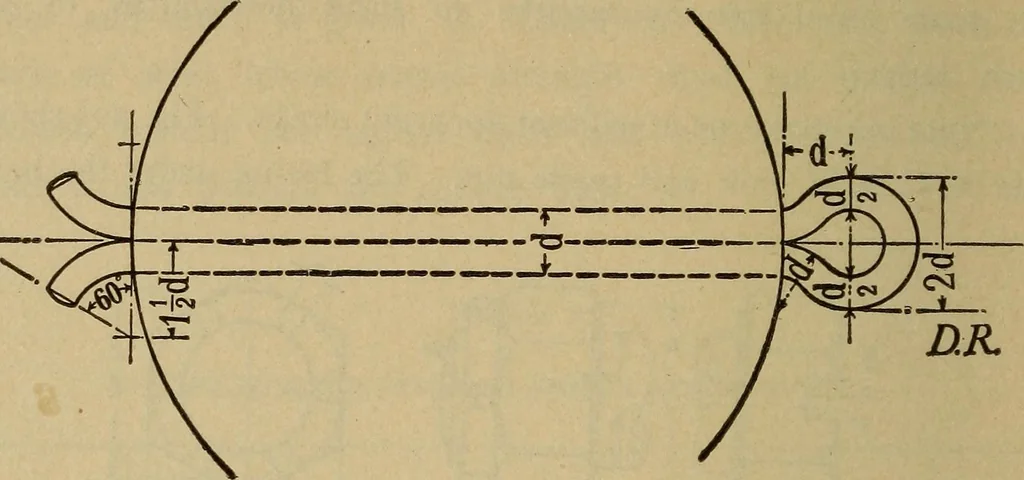

as in Fig. 326, are used for preventing pieces from sepa-rating, while allowing a slight motion in the direction ofthe axis of the piece that they pass through. The methodof drawing split pins is clearly shown in Fig. 326. The diam-eter of the pin, in proportion to the diameter d of the pieceit… … Fig. 326. split at the small end, and opened out in the same manneras the ordinary split pin, to prevent slacking back. Thediameter of the tapered pin at the large end, in proportion
