Aeroplane construction and operation; including notes on aeroplane design and aerodynamic calculation, materials, etc. A comprehensive illustrated manual of instruction for aeroplane constructors, aviators, aero-mechanics, flight officers and students. Adapted either for schools or home study (1918)
Rathbun, John B · Chicago : Stanton and Van Vliet Co. · leaf 93

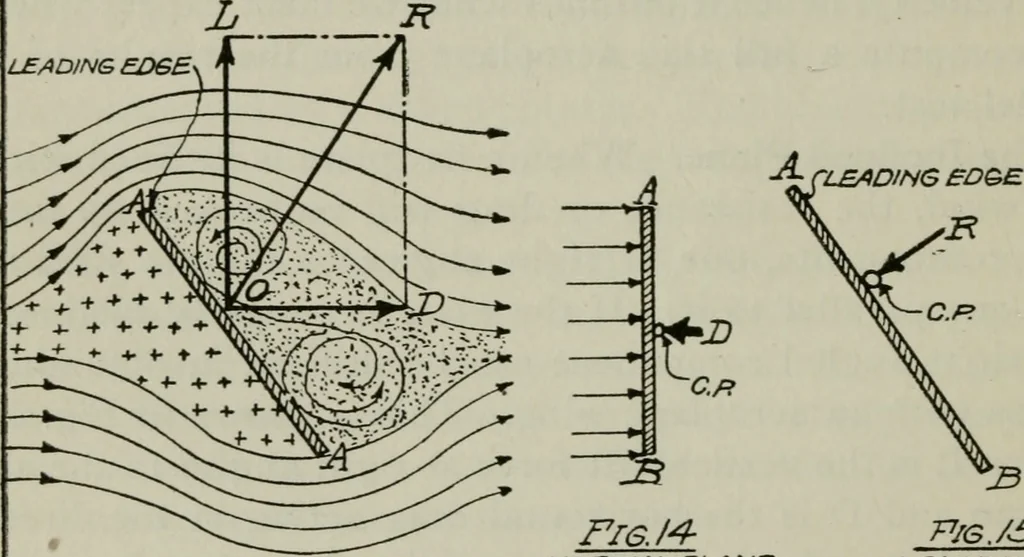

ica-tion O that the plate balances, and this point is sometimesknown as the Center of pressure. The center of pres-sure is therefore the point at which the resultant inter-sects the surface of the flat plate. The resultant OR isapproximately at right angles to the surface at smallincident angles,… … NOfSMAL PLAN£.(C.P C£/^77SACi ir^CUNEDPLAtli CC.RN£Af2L^ Fig. 13. Flow About Inclined Plane and Forces Produced by Stream. Fig.14. Normal Plane with C.P. at center of Plate. Fig. 15. C.P.Moves Toward Entering Edge When Plate Is Inclined to Wind. lift, and OD to scale representing the drag, we can…
