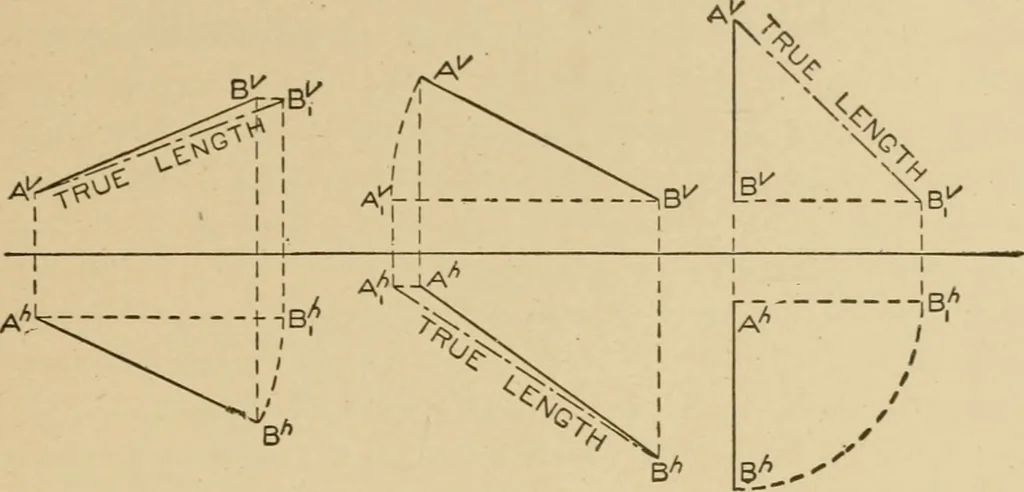

100 MECHANICAL DRAWING. 9 Third plane of projection or profile plane. A plane peipen-dicular to both co-ordinate planes, and hence to the ground line, is … called a profile plane. This plane is vertical in position, and maybe used as a plane of projection. A projection on the profile planeis called a profile view, or end view, or sometimes edge view, andis often required in machine or other drawing when the plan andelevation do not sufficiently give…
