Mechanics of engineering. Comprising statics and dynamics of solids: and the mechanics of the materials of constructions, or strength and elasticity of beams, columns, arches, shafts, etc (1888)
Church, Irving P[orter], 1851- [from old catalog] · New York, J. Wiley & sons · leaf 394

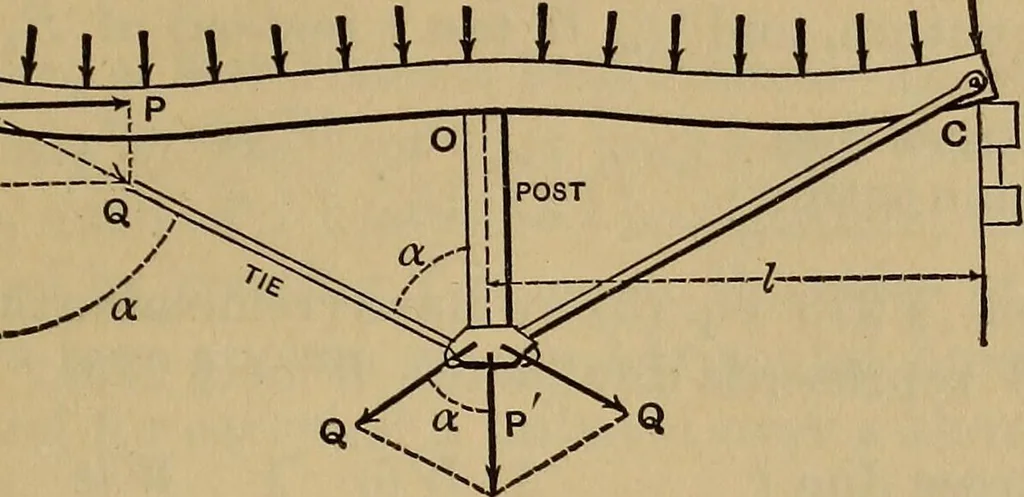

ration will be V=2FX+2F=*371.2 -^20.88 =17.7 sq. in. . (2) and is the same for any gravity axis (see § 89). As an additional example, suppose the two I-beams unitedby plates instead of lattice. Let the thickness of the plate= t, Fig. 321, (b). Neglect the rivet-holes. The distancea is known from… … Fig. 323. in the manner indicated in Fig. 322, with a single post orstrut under the middle and two tie-rods, it is subjected toa longitudinal compression due to the tension of the tie-rods, and hence to a certain extent resists as a column, theplane of whose flexure is vertical, (since we shall…
Mechanics, Applied · Engineering · Strength of materials
