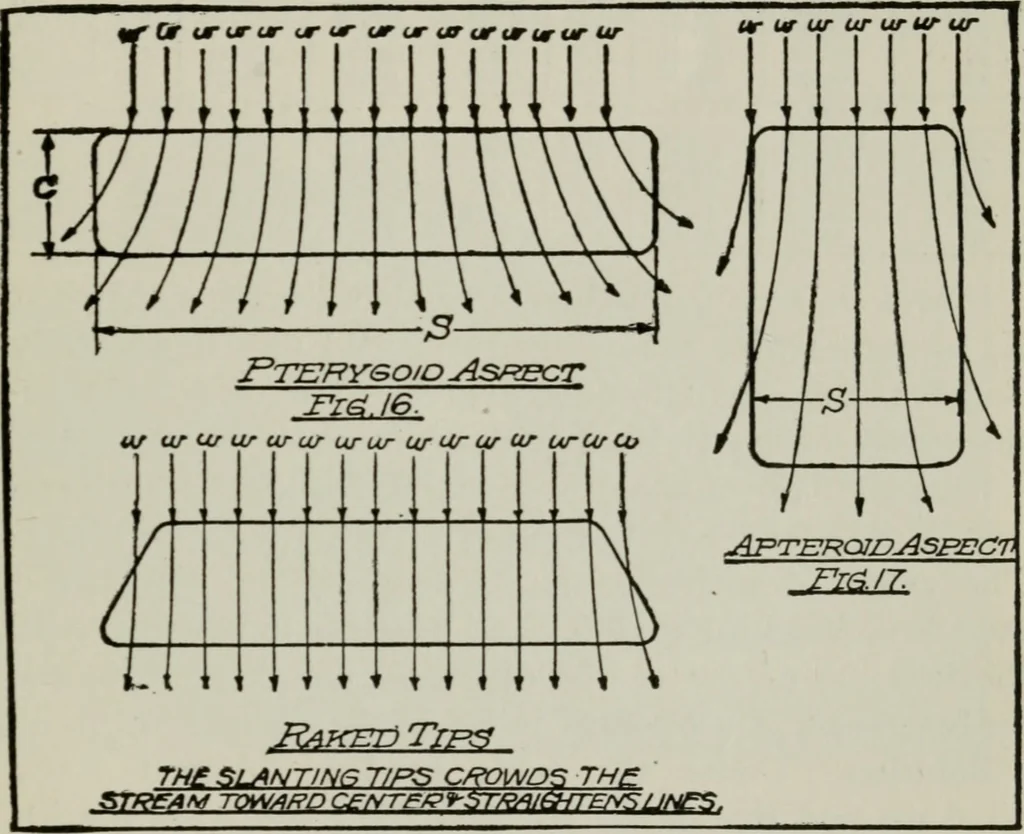

center of pressure (C. P.) for eachangle is given as a decimal fraction of its distance fromthe leading edge, in terms of the width or Chord. ELEMENTARY AERODYNAMICS 89 Fig. 16 shows the top view or plan of a lifting surface,with the direction of the wind stream indicated by thearrows w-w-w = w.… … Fig. 16. Plan View of Plate with Long Edge to Wind. Fig. 17. Platewith Narrow Edge to Wind, Showing Loss in Lift. 17a ShowsEffect of Raked Tips. to be in Pterygoid Aspect, and when the narrow edgeis presented to the wind, the wing is in Apteroid Aspect.The word Pterygoid means Bird like, and was…
